Volume pricing
- 1+ pcs$3.80
- 10+ pcs$3.59
- 100+ pcs$3.39
- 500+ pcs$3.19
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

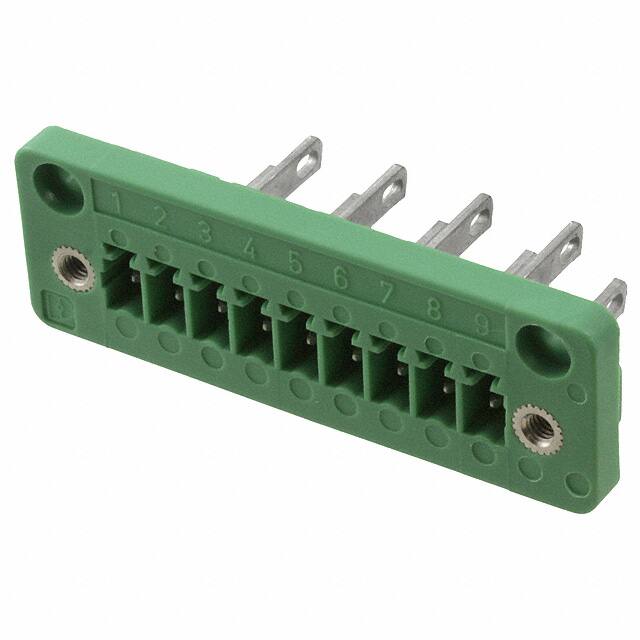

Specifications
- Akım Değeri
- 8A
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Wire Gauge Max
- 16 AWG
- Flammability Rating
- UL94 V-0
- Weight
- 198.446662g
- Max Current Rating
- 8A
- Akım
- 8A
- Housing Material
- Polyamide
- Panel Thickness
- 0.020 ~ 0.157 0.5 ~ 4.0mm
- Front Panel Wire Connection
- Header, Male Pins
- Kurşunsuz
- Lead Free
- Number Of Ways
- 9
- RoHS Durumu
- RoHS Compliant
- Connector Type
- Socket
- Fabrika Tedarik Süresi
- 7 Weeks
- Panel Mount Type
- Screw Mount - Front Flange
- Montaj Tipi
- PANEL
- Özellikler
- Threaded Mating Lock
- Wire Gauge Min
- 28 AWG
- Contact Materials
- Tin
- Number Of Decks
- 1
- Rear Panel Wire Connection
- Quick Connect - 0.110 (2.80mm), Solder Eyelet
- Nominal Gerilim
- 160V
- Renk
- Green
- Gerilim
- 300V
- Kurşunsuz Kodu
- yes
- Parça Durumu
- Active
- Terminal And Terminal Block Type
- STRIP TERMINAL BLOCK
- Genişlik
- 1.917 48.68mm
- Seri
- COMBICON DFK-MC
- Yayın Yılı
- 2011
- REACH Uyumluluk Kodu
- unknown
- Depth
- 20.4mm
- Orientation
- Straight
- Yükseklik
- 29.4mm
- Pitch
- 0.150 3.81mm
- Number Of Levels
- 1
- Terminal
- Solder
- Number Of Positions Per Level
- 9
- Sıra Sayısı
- 1
