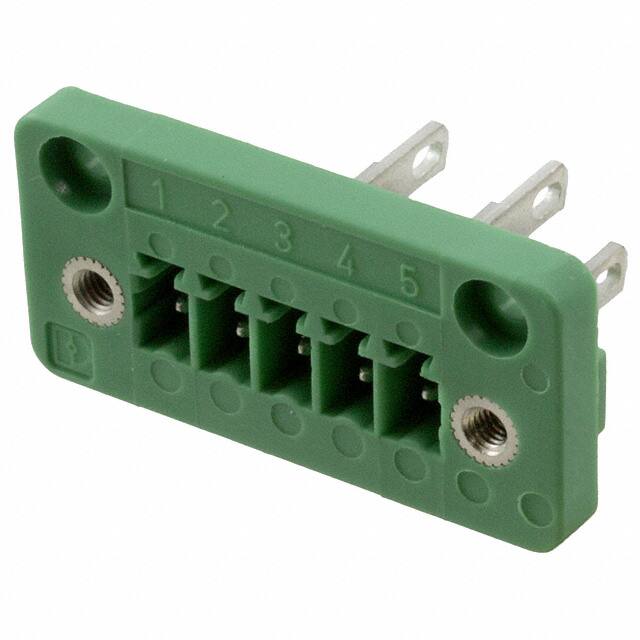

1829374

Specifications

Number Of Decks

1

Contact Materials

Tin

Wire Gauge Min

28 AWG

Rear Panel Wire Connection

Quick Connect - 0.110 (2.80mm), Solder Eyelet

Özellikler

Threaded Mating Lock

Montaj

Panel

Gerilim

300V

Nominal Gerilim

160V

Renk

Green

Parça Durumu

Active

Kurşunsuz Kodu

yes

Genişlik

1.317 33.44mm

Terminal And Terminal Block Type

STRIP TERMINAL BLOCK

Yayın Yılı

2011

Seri

COMBICON DFK-MC

Additional Feature

PA, 94V-0

Depth

29.4mm

REACH Uyumluluk Kodu

not_compliant

Terminal

Solder

Sıra Sayısı

1

Orientation

Straight

Yükseklik

29.4mm

Pitch

0.150 3.81mm

Number Of Levels

1

Safety Approval

UL

Uzunluk

33.44mm

Akım Değeri

8A

Wire Gauge Max

16 AWG

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Current Rating

8A

Weight

198.446662g

Akım

8A

Flammability Rating

UL94 V-0

Pozisyon Sayısı

5

Panel Thickness

0.020 ~ 0.157 0.5 ~ 4.0mm

Housing Material

Polyamide

Kurşunsuz

Lead Free

Number Of Ways

5

Front Panel Wire Connection

Header, Male Pins

Connector Type

Socket
