Volume pricing
- 1+ pcs$3.00
- 10+ pcs$2.83
- 100+ pcs$2.67
- 500+ pcs$2.52
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

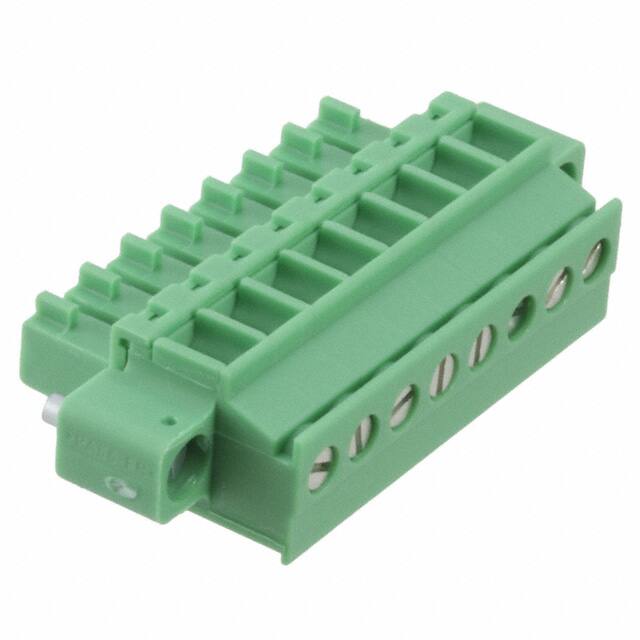

Specifications
- Akım Değeri
- 8A
- Wire Gauge Min
- 28 AWG
- Terminal Stili
- Screw - Rising Cage Clamp
- Housing Material
- Polyamide (PA), Nylon
- Voltageiec
- 320V
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Montaj
- Cable, Free Hanging
- Wire Gauge Or Range Mm
- 0.14-1.5mm2
- Plug Wire Entry
- 90°
- Yayın Yılı
- 2012
- Yükseklik
- 12.5mm
- Weight
- 100.999996g
- Pitch
- 0.150 3.81mm
- Screw Size
- M2
- Wire Gauge Max
- 16 AWG
- Montaj Tipi
- Free Hanging (In-Line)
- Insulation Height
- 0.752 19.10mm
- Akım
- 8A
- Parça Durumu
- Active
- Uzunluk
- 40.87mm
- Number Of Decks
- 1
- ECCN Kodu
- EAR99
- Tip
- Plug, Female Sockets
- Depth
- 19.1mm
- Kurşunsuz Kodu
- yes
- Renk
- Green
- Gerilim
- 300V
- Material Flammability Rating
- UL94 V-0
- Wire Strip Length
- 7mm
- Terminal
- Screw
- Material
- Polyamide
- Safety Approval
- UL
- RoHS Durumu
- RoHS Compliant
- Flammability Rating
- UL94 V-0
- Wire Gauge Or Range Awg
- 14-30 AWG
- Contact Plating
- Tin
- Number Of Ways
- 8
- Additional Feature
- PA, 94V-0
- Fabrika Tedarik Süresi
- 4 Weeks
- Özellikler
- Mating Flange
