Volume pricing
- 1+ pcs$0.90
- 10+ pcs$0.85
- 100+ pcs$0.80
- 500+ pcs$0.76
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

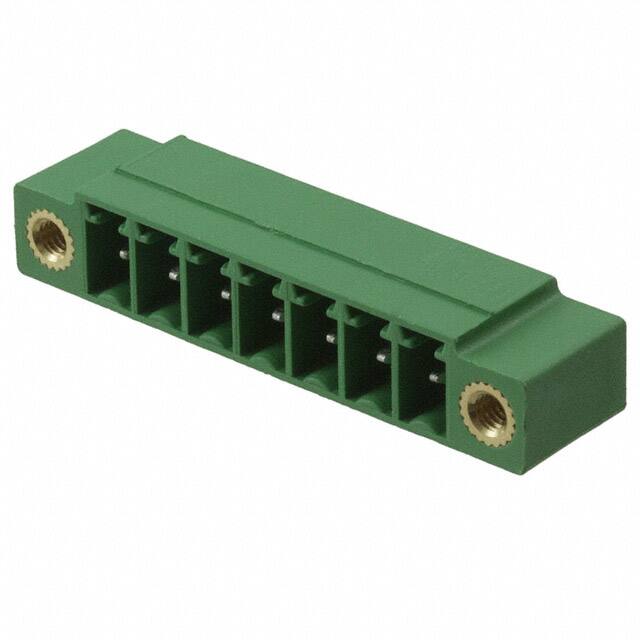

Specifications
- Material Flammability Rating
- UL94 V-0
- Kurşunsuz
- Lead Free
- Max Current Rating
- 8A
- Akım Değeri
- 8A
- Fastening Method
- CONNECTOR
- Pitch
- 0.150 3.81mm
- Seri
- COMBICON MC
- Sıra Sayısı
- 1
- Fabrika Tedarik Süresi
- 4 Weeks
- Özellikler
- Mating and Mounting Flange
- Terminal Stili
- Solder
- Renk
- Green
- Nominal Gerilim
- 160V
- Additional Feature
- STANDARD: UL 94V-0, PBT, SAFETY APPROVAL: VDE
- RoHS Durumu
- RoHS Compliant
- Depth
- 9.2mm
- REACH Uyumluluk Kodu
- not_compliant
- Montaj Tipi
- Through Hole
- Flammability Rating
- UL94 V-0
- Tip
- Header, Male Pins, Shrouded (4 Side)
- Contact Tail Length
- 0.134 3.40mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Ambalaj
- Bulk
- Number Of Decks
- 1
- HTS Kodu
- 8536.69.40.40
- Orientation
- Right Angle
- Number Of Ways
- 7
- Number Of Levels
- 1
- Contact Mating Finish
- Tin
- ECCN Kodu
- EAR99
- Housing Material
- Polybutylene Terephthalate (PBT)
- Montaj
- Through Hole
- Voltageiec
- 250V
- Yayın Yılı
- 2011
- Parça Durumu
- Active
- Pozisyon Sayısı
- 7
- Header Orientation
- 90°, Right Angle
- Weight
- 113.398093g
- Insulation Height
- 0.285 7.25mm
- Safety Approval
- CB; CCA; CSA; CUL; EAC; UL
