Volume pricing
- 1+ pcs$4.09
- 10+ pcs$3.86
- 100+ pcs$3.64
- 500+ pcs$3.44
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

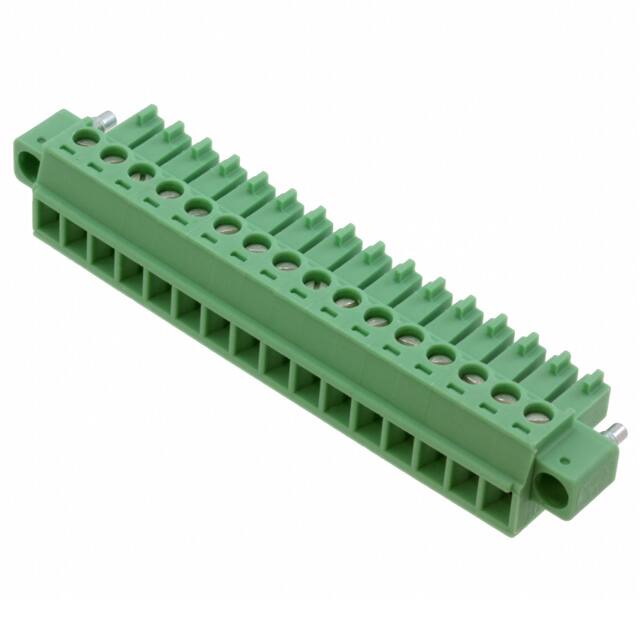

Specifications
- Additional Feature
- PA, 94V-0
- Nominal Gerilim
- 160V
- RoHS Durumu
- RoHS Compliant
- Tip
- Plug, Female Sockets
- Akım Değeri
- 8A
- Max Supply Voltage
- 160V
- Pitch
- 0.150 3.81mm
- Seri
- COMBICON MC
- Kurşunsuz
- Lead Free
- Wire Gauge Or Range Mm
- 0.14-1.5mm2
- Özellikler
- Mating Flange
- Number Of Contacts
- 16
- Wire Gauge Min
- 14 AWG
- Yayın Yılı
- 2010
- Parça Durumu
- Active
- Montaj
- Cable, Free Hanging, Panel
- Screw Size
- M2
- Voltageiec
- 320V
- Genişlik
- 16.1mm
- Kurşunsuz Kodu
- yes
- Akım
- 8A
- Insulation Height
- 0.437 11.10mm
- Weight
- 98.999993g
- Number Of Ways
- 16
- Material
- Polyamide
- Number Of Decks
- 1
- Wire Strip Length
- 7mm
- Number Of Levels
- 1
- Yükseklik
- 16.1mm
- Contact Plating
- Tin
- Depth
- 16.1mm
- Flammability Rating
- UL94 V-0
- Montaj Tipi
- Free Hanging (In-Line)
- Sıra Sayısı
- 1
- Material Flammability Rating
- UL94 V-0
- Max Current Rating
- 8A
- Renk
- Green
- Fabrika Tedarik Süresi
- 6 Weeks
- Terminal Stili
- Screw - Rising Cage Clamp
- Connector Type
- Screw, Socket
