Volume pricing
- 1+ pcs$1.45
- 10+ pcs$1.37
- 100+ pcs$1.29
- 500+ pcs$1.22
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

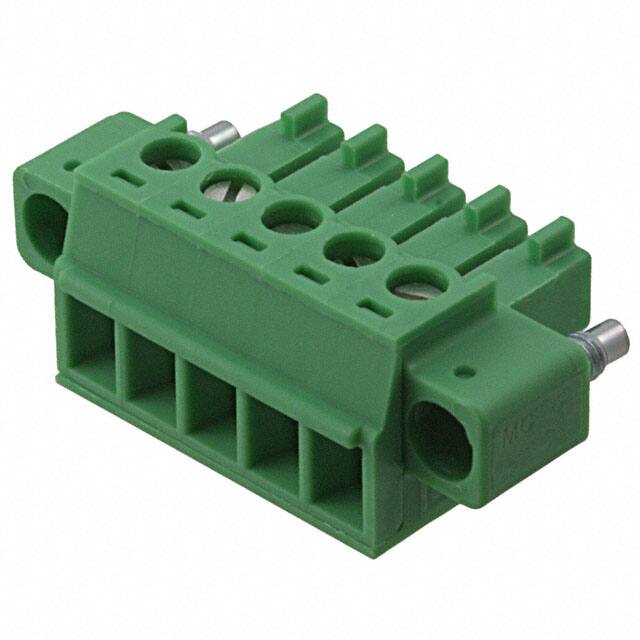

Specifications
- Yayın Yılı
- 2008
- Parça Durumu
- Active
- Wire Gauge Min
- 14 AWG
- Number Of Contacts
- 5
- Voltageiec
- 320V
- Montaj
- Cable, Free Hanging, Panel
- Screw Size
- M2
- Genişlik
- 16.1mm
- Insulation Height
- 0.437 11.10mm
- Weight
- 98.999993g
- Kurşunsuz Kodu
- yes
- Akım
- 8A
- Number Of Ways
- 5
- Number Of Decks
- 1
- Material
- Polyamide
- Wire Strip Length
- 7mm
- Yükseklik
- 11.1mm
- Number Of Levels
- 1
- Onay Kuruluşu
- CB, CSA, UL, VDE, cULus
- RoHS Durumu
- RoHS Compliant
- Nominal Gerilim
- 160V
- Additional Feature
- PA, 94V-0
- Tip
- Plug, Female Sockets
- Seri
- COMBICON MC
- Akım Değeri
- 8A
- Pitch
- 0.150 3.81mm
- Max Supply Voltage
- 160V
- Kurşunsuz
- Lead Free
- Wire Gauge Or Range Mm
- 0.14-1.5mm2
- Özellikler
- Mating Flange
- Terminal
- Screw
- Wire Gauge Or Range Awg
- 14-30 AWG
- Wire Gauge Max
- 30 AWG
- Uzunluk
- 29.44mm
- Plug Wire Entry
- 180°
- Gerilim
- 300V
- Safety Approval
- UL
- Radyasyon Dayanımı
- No
- Contact Materials
- Copper
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
