Volume pricing
- 1+ pcs$1.14
- 10+ pcs$1.08
- 100+ pcs$1.02
- 500+ pcs$0.96
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

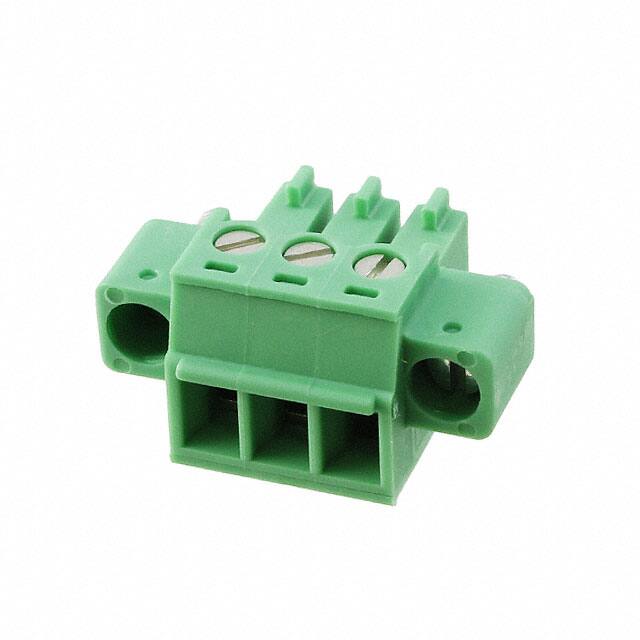

Specifications
- Material Flammability Rating
- UL94 V-0
- Max Current Rating
- 8A
- Sıra Sayısı
- 1
- Fabrika Tedarik Süresi
- 5 Weeks
- Terminal Stili
- Screw - Rising Cage Clamp
- Connector Type
- Screw, Socket
- Renk
- Green
- Depth
- 11.1mm
- Flammability Rating
- UL94 V-0
- Montaj Tipi
- Free Hanging (In-Line)
- Orientation
- Right Angle
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Ambalaj
- Bulk
- Gender
- Female
- Housing Material
- Polyamide (PA), Nylon
- Contact Mating Finish
- Tin
- ECCN Kodu
- EAR99
- Wire Gauge Or Range Awg
- 14-30 AWG
- Terminal
- Screw
- Contact Materials
- Copper
- Safety Approval
- UL
- Plug Wire Entry
- 180°
- Gerilim
- 300V
- Wire Gauge Max
- 16 AWG
- Uzunluk
- 21.82mm
- Kurşunsuz
- Lead Free
- Pitch
- 0.150 3.81mm
- Akım Değeri
- 8A
- Seri
- COMBICON MC
- Özellikler
- Mating Flange
- Wire Gauge Or Range Mm
- 0.14-1.5mm2
- Nominal Gerilim
- 160V
- Additional Feature
- PA, 94V-0
- RoHS Durumu
- RoHS Compliant
- REACH Uyumluluk Kodu
- not_compliant
- Tip
- Plug, Female Sockets
- Material
- Polyamide
- Number Of Decks
- 1
- Number Of Ways
- 3
- Onay Kuruluşu
- CB, CSA, UL, VDE, cULus
