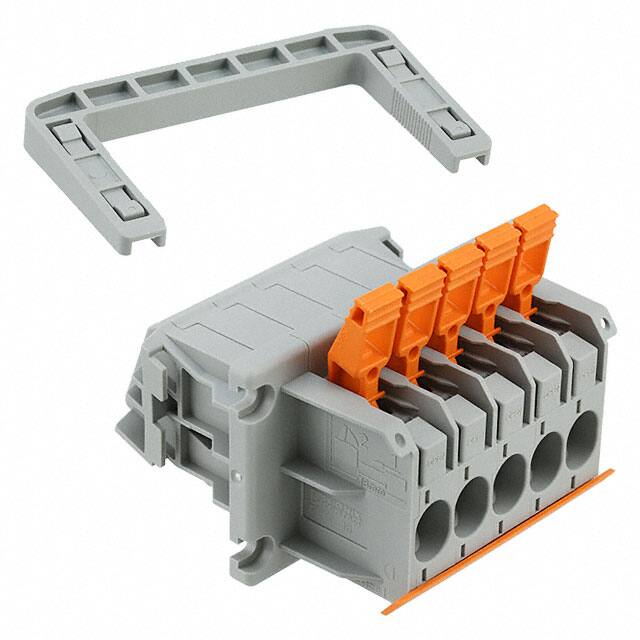

1821083

Specifications

Genişlik

2.929 74.40mm

Gerilim

600V

Wire Gauge Max

16 AWG

Uzunluk

74.8mm

Akım

40A

Kurşunsuz Kodu

yes

Wire Gauge Min

6 AWG

Yayın Yılı

2014

Panel Mount Type

2 Piece

Parça Durumu

Active

Panel Thickness

0.758 19.26mm

Montaj

Panel

Number Of Levels

1

Gender

Male

Material

Polyamide

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Number Of Positions Per Level

5

Front Panel Wire Connection

Push In Clamp - Wire Entry Angled to Panel

Depth

35.7mm

Flammability Rating

UL94 V-0

Terminal And Terminal Block Type

BARRIER STRIP TERMINAL BLOCK

Nominal Gerilim

1kV

RoHS Durumu

RoHS Compliant

Renk

Gray

Özellikler

Lever Actuated

Fabrika Tedarik Süresi

4 Weeks

Pitch

0.394 10.00mm

Akım Değeri

41A

Seri

CLIPLINE PLW

Wire Gauge

6-16 AWG

Rear Panel Wire Connection

Push In Clamp - Wire Entry 90° to Panel
