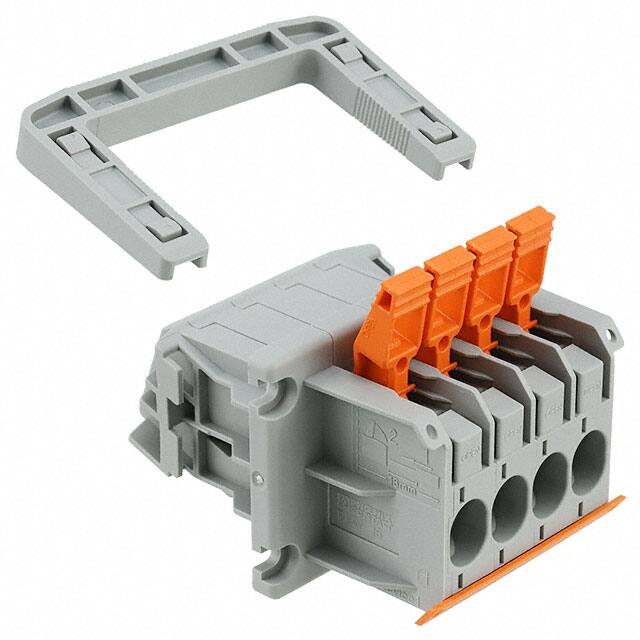

1821070

Specifications

Fabrika Tedarik Süresi

4 Weeks

Özellikler

Lever Actuated

Renk

Granite

Wire Gauge

6-16 AWG

Rear Panel Wire Connection

Push In Clamp - Wire Entry 90° to Panel

Pitch

0.394 10.00mm

Akım Değeri

41A

Seri

CLIPLINE PLW

Depth

35.7mm

Flammability Rating

UL94 V-0

Number Of Positions Per Level

4

Front Panel Wire Connection

Push In Clamp - Wire Entry Angled to Panel

Terminal And Terminal Block Type

BARRIER STRIP TERMINAL BLOCK

Nominal Gerilim

1kV

RoHS Durumu

RoHS Compliant

Number Of Levels

1

Gender

Male

Material

Polyamide

Orientation

Straight

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Akım

40A

Genişlik

2.535 64.40mm

Gerilim

500V

Uzunluk

64.8mm

Wire Gauge Max

16 AWG

Montaj

Panel

Wire Gauge Min

6 AWG

Panel Thickness

0.758 19.26mm

Yayın Yılı

2014

Panel Mount Type

2 Piece

Parça Durumu

Active
