Volume pricing
- 1+ pcs$1.05
- 10+ pcs$0.99
- 100+ pcs$0.93
- 500+ pcs$0.88
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Akım Değeri
- 12A
- Currentiec
- 12A
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Wire Gauge Max
- 20 AWG
- Tip

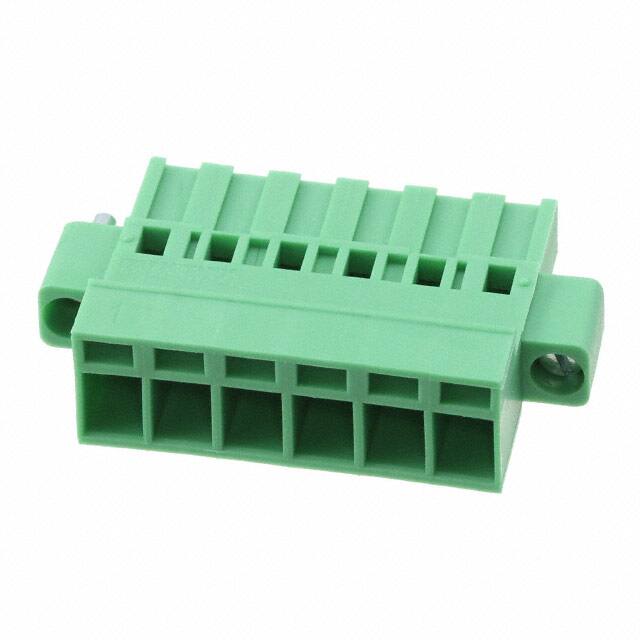

- Plug Housing for Female Sockets
- Flammability Rating
- UL94 V-0
- Akım
- 10A
- Housing Material
- Polyamide (PA), Nylon
- Pozisyon Sayısı
- 6
- Wire Gauge Or Range Awg
- 14-20 AWG
- Insulation Height
- 0.413 10.49mm
- Number Of Ways
- 6
- RoHS Durumu
- RoHS Compliant
- Voltageiec
- 630V
- Connector Type
- Crimp
- Wire Cross Section
- 2.5 mm2
- ECCN Kodu
- EAR99
- Fabrika Tedarik Süresi
- 4 Weeks
- Montaj Tipi
- Free Hanging (In-Line)
- Özellikler
- Mating Flange
- Number Of Decks
- 1
- Wire Gauge Min
- 14 AWG
- Nominal Gerilim
- 320V
- Renk
- Green
- Material Flammability Rating
- UL94 V-0
- Montaj
- Free Hanging
- Gerilim
- 300V
- Kurşunsuz Kodu
- yes
- Parça Durumu
- Active
- Plug Wire Entry
- 180°
- Contact Plating
- Tin
- Seri
- COMBICON MSTBC
- Yayın Yılı
- 2010
- Wire Gauge Or Range Mm
- 0.5-2.5mm2
- Additional Feature
- PA, 94V-0
- Ambalaj
- Bulk
- Number Of Levels
- 1
- Pitch
- 0.200 5.08mm
- Sıra Sayısı
- 1
- Safety Approval
- UL
