Volume pricing
- 1+ pcs$2.25
- 10+ pcs$2.12
- 100+ pcs$2.00
- 500+ pcs$1.89
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

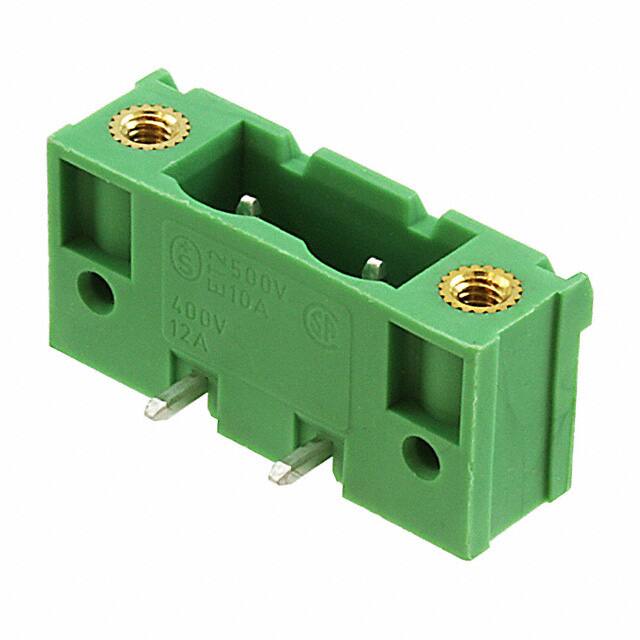

Specifications
- ECCN Kodu
- EAR99
- Voltageiec
- 630V
- Uzunluk
- 5.2mm
- Currentul
- 15A
- Akım
- 10A
- Number Of Ways
- 2
- Flammability Rating
- UL94 V-0
- Seri
- COMBICON GMSTB
- Gerilim
- 300V
- Pozisyon Sayısı
- 2
- Nominal Gerilim
- 400V
- Fabrika Tedarik Süresi
- 4 Weeks
- Number Of Decks
- 1
- Depth
- 2.66mm
- HTS Kodu
- 8536.69.40.40
- Terminal Stili
- Solder
- Kurşunsuz Kodu
- yes
- Material Flammability Rating
- UL94 V-0
- Contact Mating Finish
- Tin
- Safety Approval
- CSA; UL
- Header Orientation
- 90°, Right Angle
- Montaj Tipi
- Through Hole
- Pitch
- 0.300 7.62mm
- Tip
- Header, Male Pins, Shrouded (4 Side)
- Sıra Sayısı
- 1
- Weight
- 174.99999g
- Yayın Yılı
- 2011
- Housing Material
- Polyamide (PA), Nylon
- Insulation Height
- 0.339 8.61mm
- Akım Değeri
- 12A
- Renk
- Green
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Number Of Levels
- 1
- REACH Uyumluluk Kodu
- unknown
- RoHS Durumu
- RoHS Compliant
- Contact Tail Length
- 0.138 3.50mm
- Additional Feature
- PBT; 94V-0
- Parça Durumu
- Active
- Montaj
- Through Hole
- Özellikler
- Mating and Mounting Flange
