Specifications
- Montaj
- Through Hole
- Voltage Rated Dc
- 640mV
- Ambalaj
- Bulk
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Material Flammability Rating
- UL94 V-0
- Fabrika Tedarik Süresi
- 7 Weeks
- Pitch
- 0.150 3.81mm
- Uzunluk
- 28.06mm
- Terminal Stili
- Solder
- Seri
- COMBICON MCV
- HTS Kodu
- 8536.69.40.40
- Housing Material
- Polybutylene Terephthalate (PBT)
- Number Of Ways
- 7
- Akım Değeri
- 8A
- Orientation
- Straight
- Montaj Tipi
- Through Hole
- Onay Kuruluşu
- CSA, UL
- Sıra Sayısı
- 1
- Voltageiec
- 250V
- Renk
- Green
- RoHS Durumu
- RoHS Compliant
- Insulation Height
- 0.362 9.20mm
- Number Of Levels
- 1
- Yayın Yılı
- 2005
- Header Orientation
- Vertical
- Number Of Decks
- 1
- Fastening Method
- CONNECTOR
- Nominal Gerilim
- 160V
- Safety Approval
- CB; CCA; CSA; CUL; EAC; UL
- Kurşunsuz Kodu
- yes
- Contact Mating Finish
- Tin
- Gender
- Male
- Parça Durumu
- Active
- Number Of Poles
- 7
- Material
- PBT
- Contact Tail Length
- 0.134 3.40mm
- Max Current Rating
- 8A
- Flammability Rating
- UL94 V-0
- Depth
- 7.25mm
- Tip

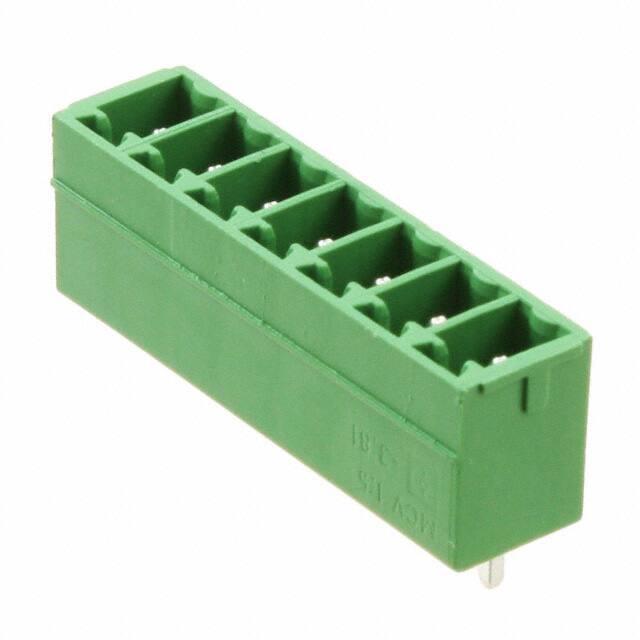

- Header, Male Pins, Shrouded (4 Side)
