Volume pricing
- 1+ pcs$2.81
- 10+ pcs$2.65
- 100+ pcs$2.50
- 500+ pcs$2.36
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Kurşunsuz
- Lead Free
- Flammability Rating
- UL94 V-0
- Gerilim
- 300V
- Voltageiec
- 630V
- ECCN Kodu
- EAR99
- Number Of Ways
- 13
- Currentul
- 15A
- Uzunluk
- 7mm
- Wire Gauge Max
- 30 AWG
- Material Flammability Rating
- UL94 V-0
- Nominal Gerilim
- 250V
- Fabrika Tedarik Süresi
- 4 Weeks
- HTS Kodu
- 8536.69.40.40
- Yükseklik
- 26mm
- Insulation Height
- 1.024 26.01mm

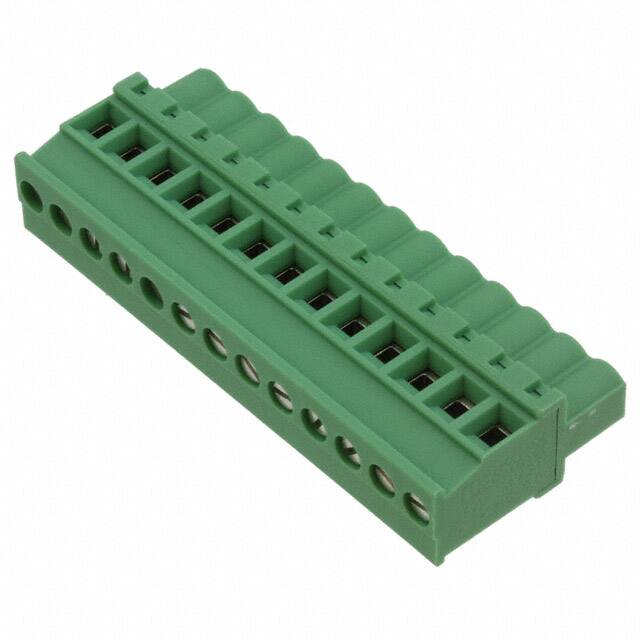

- Tip
- Plug, Female Sockets
- Contact Plating
- Tin
- Montaj
- Free Hanging
- Wire Gauge Min
- 24 AWG
- Number Of Levels
- 1
- RoHS Durumu
- RoHS Compliant
- Wire Gauge Or Range Awg
- 12-30 AWG
- Seri
- COMBICON MVSTBW
- Plug Wire Entry
- 270°
- Akım
- 10A
- Wire Gauge Or Range Mm
- 0.2-2.5mm2
- Screw Size
- M3
- Montaj Tipi
- Free Hanging (In-Line)
- Safety Approval
- UL
- Pozisyon Sayısı
- 13
- Genişlik
- 66.04mm
- Kurşunsuz Kodu
- yes
- Terminal Stili
- Screw - Rising Cage Clamp
- Number Of Decks
- 1
- Housing Material
- Polyamide (PA), Nylon
- Yayın Yılı
- 2011
- Renk
- Green
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Akım Değeri
- 12A
- Wire Cross Section
- 2.5 mm2
