Volume pricing
- 1+ pcs$3.05
- 10+ pcs$2.88
- 100+ pcs$2.72
- 500+ pcs$2.56
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Max Current Rating
- 12A
- Yükseklik
- 26mm
- Insulation Height
- 1.024 26.01mm
- Radyasyon Dayanımı
- No
- Tip

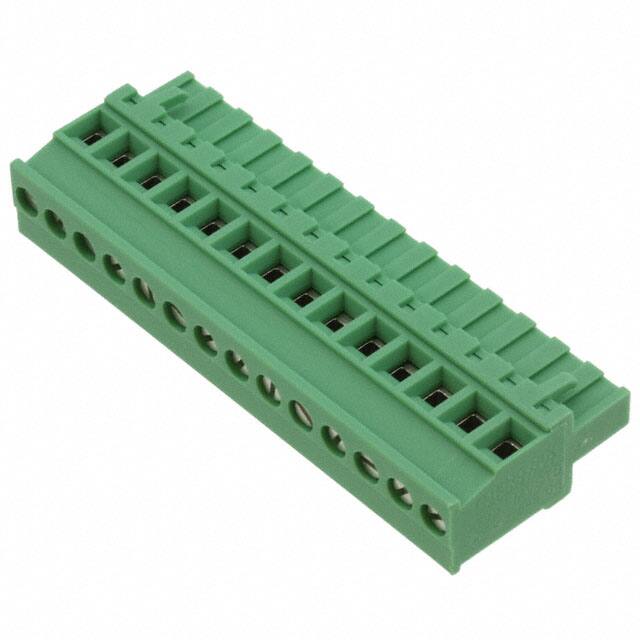

- Plug, Female Sockets
- Montaj
- Cable, Free Hanging
- Contact Plating
- Tin
- RoHS Durumu
- RoHS Compliant
- Number Of Levels
- 1
- Wire Strip Length
- 7mm
- Wire Gauge Min
- 12 AWG
- Orientation
- Straight
- Gerilim
- 300V
- Flammability Rating
- UL94 V-0
- Kurşunsuz
- Lead Free
- Currentul
- 15A
- Uzunluk
- 71.12mm
- Number Of Ways
- 14
- ECCN Kodu
- EAR99
- Voltageiec
- 630V
- Number Of Contacts
- 14
- Wire Gauge Max
- 30 AWG
- Material Flammability Rating
- UL94 V-0
- Depth
- 12.6mm
- HTS Kodu
- 8536.69.40.40
- Nominal Gerilim
- 250V
- Fabrika Tedarik Süresi
- 7 Weeks
- Akım Değeri
- 12A
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Renk
- Green
- Housing Material
- Polyamide (PA), Nylon
- Yayın Yılı
- 2003
- Max Supply Voltage
- 250V
- Weight
- 132.000001g
- Wire Cross Section
- 2.5 mm2
- Pitch
- 0.200 5.08mm
- Özellikler
- Retention Latches (Wire Side)
- Terminal
- Screw
- Ambalaj
- Bulk
- Additional Feature
- POLYAMIDE, 94V-0
