Volume pricing
- 1+ pcs$2.49
- 10+ pcs$2.35
- 100+ pcs$2.22
- 500+ pcs$2.09
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

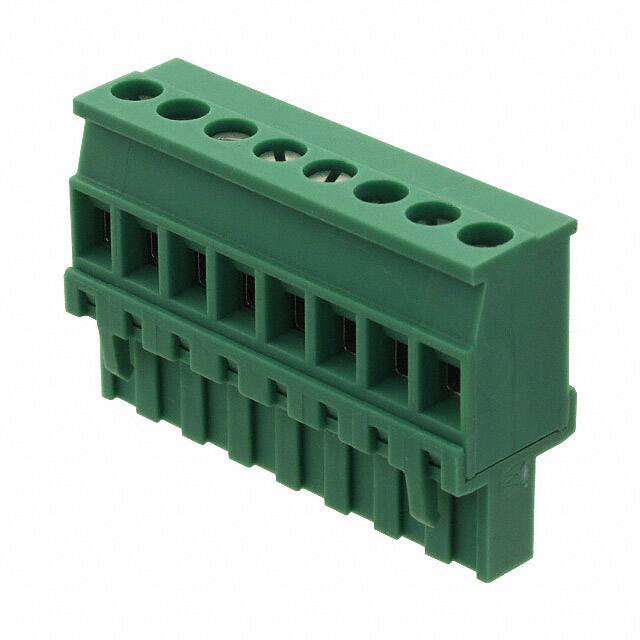

Specifications
- Radyasyon Dayanımı
- No
- Max Current Rating
- 12A
- Insulation Height
- 1.024 26.01mm
- Yükseklik
- 26mm
- Tip
- Plug, Female Sockets
- Contact Plating
- Tin
- Montaj
- Cable, Free Hanging
- Number Of Levels
- 1
- Orientation
- Straight
- Wire Gauge Min
- 24 AWG
- RoHS Durumu
- RoHS Compliant
- Flammability Rating
- UL94 V-0
- Kurşunsuz
- Lead Free
- Gerilim
- 300V
- ECCN Kodu
- EAR99
- Voltageiec
- 630V
- Uzunluk
- 40mm
- Number Of Ways
- 8
- Wire Gauge Max
- 12 AWG
- Number Of Contacts
- 8
- Material Flammability Rating
- UL94 V-0
- Gender
- Female
- Onay Kuruluşu
- CB, CSA, UL, VDE, cULus
- Fabrika Tedarik Süresi
- 7 Weeks
- Nominal Gerilim
- 250V
- Depth
- 12.6mm
- Insulation Materials
- Nylon
- Stripping Length
- 7mm
- Housing Material
- Polyamide (PA), Nylon
- Yayın Yılı
- 2010
- Akım Değeri
- 12A
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Renk
- Green
- Pitch
- 0.197 5.00mm
- Wire Cross Section
- 2.5 mm2
- Material
- Polyamide
- Max Supply Voltage
- 250V
- Sıra Sayısı
- 1
- Weight
- 1.200205kg
- Additional Feature
- PA, 94V-0
