Volume pricing
- 1+ pcs$1.33
- 10+ pcs$1.26
- 100+ pcs$1.18
- 500+ pcs$1.12
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

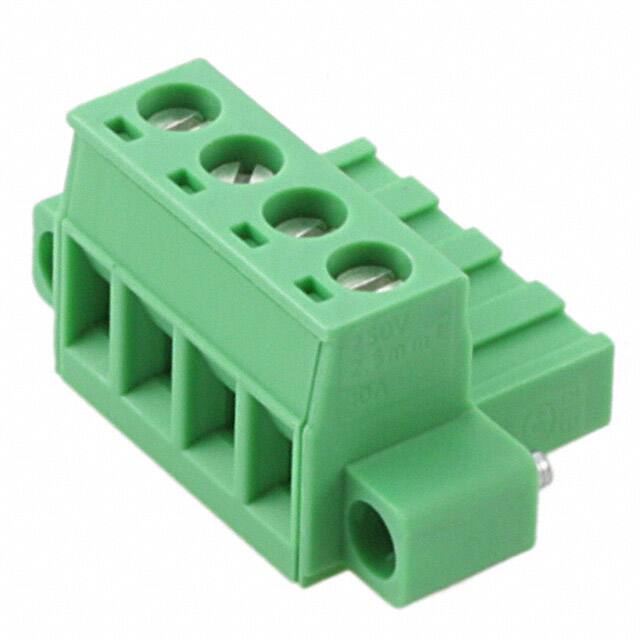

Specifications
- Kurşunsuz Kodu
- yes
- Orientation
- Right Angle
- Seri
- COMBICON MSTB
- Currentul
- 15A
- Terminal Stili
- Screw - Rising Cage Clamp
- Connector Type
- Screw, Socket
- Terminal
- Screw
- Weight
- 1.000171kg
- Uzunluk
- 7mm
- Number Of Contacts
- 4
- Fabrika Tedarik Süresi
- 11 Weeks
- Yayın Yılı
- 2011
- Gerilim
- 300V
- Screw Size
- M3
- Contact Plating
- Tin
- Flammability Rating
- UL94 V-0
- Safety Approval
- UL
- Wire Gauge Max
- 30 AWG
- Akım Değeri
- 12A
- Genişlik
- 30.01mm
- Akım
- 12A
- Number Of Levels
- 1
- RoHS Durumu
- RoHS Compliant
- Voltageiec
- 630V
- Max Current Rating
- 12A
- Renk
- Green
- Kurşunsuz
- Lead Free
- Yükseklik
- 18.2mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Wire Gauge Min
- 12 AWG
- Wire Cross Section
- 2.5 mm2
- Parça Durumu
- Active
- Özellikler
- Mating Flange
- Montaj Tipi
- Free Hanging (In-Line)
- Sıra Sayısı
- 1
- Material Flammability Rating
- UL94 V-0
- Number Of Decks
- 1
- Pitch
- 0.197 5.00mm
- Insulation Height
- 0.591 15.00mm
- Tip
- Plug, Female Sockets
