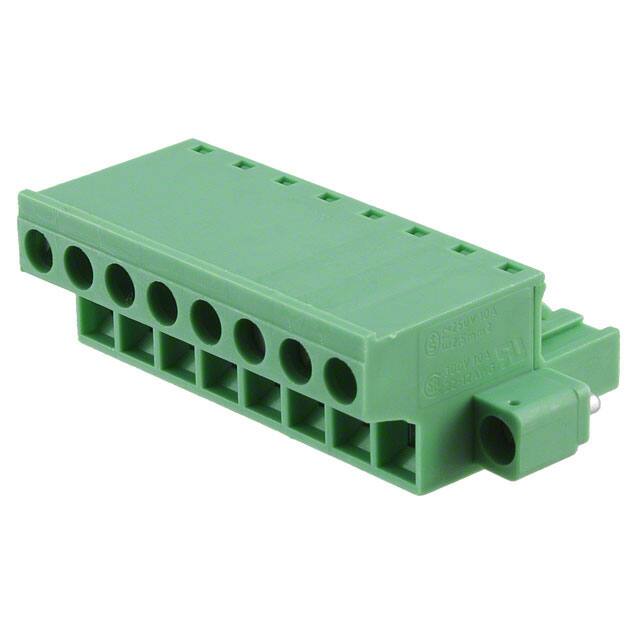

Specifications
- Tip
- Plug, Female Sockets
- Wire Cross Section
- 2.5 mm2
- Number Of Positions Per Level
- 8
- Terminal Stili
- Screw - Pressure Clip
- Akım
- 15A
- Wire Gauge Or Range Awg
- 12-30 AWG
- Currentiec
- 12A
- Voltageiec
- 630V
- Seri
- COMBICON FRONT-MSTB
- ECCN Kodu
- EAR99
- Montaj
- Free Hanging
- Montaj Tipi
- Free Hanging (In-Line)
- Parça Durumu
- Active
- RoHS Durumu
- RoHS Compliant
- Sıra Sayısı
- 1
- REACH Uyumluluk Kodu
- unknown
- Number Of Ways
- 8
- Yayın Yılı
- 2011
- Screw Size
- M2.5
- Nominal Gerilim
- 250V
- Wire Gauge Max
- 30 AWG
- Akım Değeri
- 12A
- Insulation Height
- 0.591 15.00mm
- Kurşunsuz Kodu
- yes
- Number Of Levels
- 1
- Wire Strip Length
- 10mm
- Connector Type
- Screw
- Fabrika Tedarik Süresi
- 4 Weeks
- Material Flammability Rating
- UL94 V-0
- Wire Gauge Or Range Mm
- 0.2-2.5mm2
- Renk
- Green
- Özellikler
- Mating Flange, Retention Latches (Non-Wire Side)
- Ambalaj
- Bulk
- Contact Mating Finish
- Tin
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Weight
- 907.18474g
- Pitch
- 0.197 5.00mm
- Flammability Rating
- UL94 V-0
- Safety Approval
- UL
- Wire Gauge Min
- 12 AWG
