Volume pricing
- 1+ pcs$17.02
- 10+ pcs$16.05
- 100+ pcs$15.15
- 500+ pcs$14.29
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

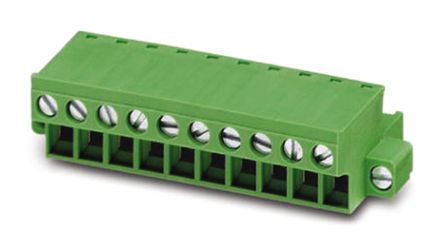

Specifications
- Yayın Yılı
- 2011
- Contact Plating
- Tin
- Number Of Ways
- 9
- Wire Gauge Max
- 30 AWG
- Akım Değeri
- 12A
- Insulation Height
- 1.083 27.51mm
- Kurşunsuz Kodu
- yes
- Screw Size
- M2.5
- Nominal Gerilim
- 250V
- Wire Strip Length
- 10mm
- Connector Type
- Screw, Socket
- Fabrika Tedarik Süresi
- 4 Weeks
- Number Of Levels
- 1
- Depth
- 6.92mm
- Material Flammability Rating
- UL94 V-0
- Wire Gauge Or Range Mm
- 0.2-2.5mm2
- Renk
- Green
- Weight
- 135.000004g
- Pitch
- 0.200 5.08mm
- Flammability Rating
- UL94 V-0
- Safety Approval
- UL
- Özellikler
- Mating Flange, Retention Latches (Non-Wire Side)
- Ambalaj
- Bulk
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Plug Wire Entry
- 180°
- Gerilim
- 300V
- Housing Material
- Polyamide (PA), Nylon
- Wire Gauge Min
- 12 AWG
- Terminal
- Screw
- Yükseklik
- 27.2mm
- Kurşunsuz
- Lead Free
- Number Of Decks
- 1
- Tip
- Plug, Female Sockets
- Wire Cross Section
- 2.5 mm2
- Terminal Stili
- Screw - Pressure Clip
- Akım
- 15A
- Genişlik
- 55.52mm
- Voltageiec
- 630V
- Wire Gauge Or Range Awg
- 12-30 AWG
- Currentiec
- 12A
