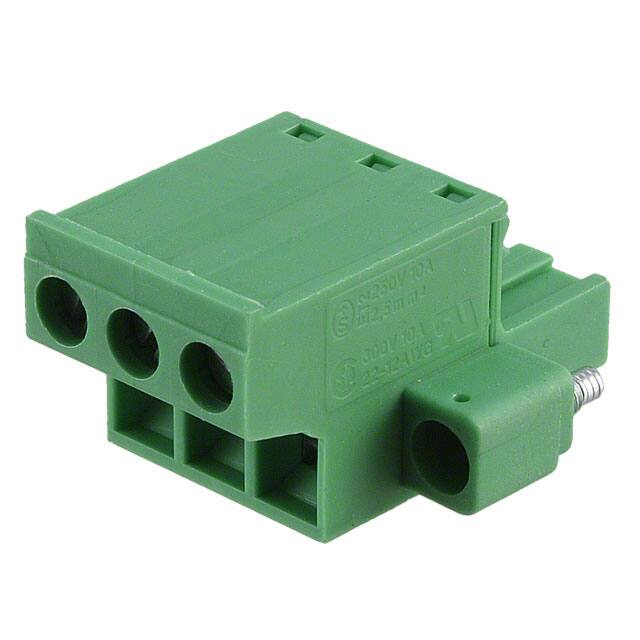

Specifications
- Akım
- 10A
- Number Of Contacts
- 3
- Wire Cross Section
- 2.5 mm2
- RoHS Durumu
- RoHS Compliant
- Wire Gauge Or Range Awg
- 12-30 AWG
- Seri
- COMBICON FRONT-MSTB
- Material Flammability Rating
- UL94 V-0
- Currentul
- 15A
- Wire Gauge Or Range Mm
- 0.2-2.5mm2
- Renk
- Green
- Yayın Yılı
- 2011
- Number Of Ways
- 3
- Kurşunsuz Kodu
- yes
- Yükseklik
- 25.04mm
- Flammability Rating
- UL94 V-0
- Pitch
- 0.200 5.08mm
- Özellikler
- Mating Flange, Retention Latches (Non-Wire Side)
- Housing Material
- Polyamide (PA), Nylon
- Contact Materials
- Copper
- Max Current Rating
- 12A
- Tip
- Plug, Female Sockets
- Terminal Stili
- Screw - Pressure Clip
- Montaj Tipi
- Free Hanging (In-Line)
- Orientation
- Right Angle
- Parça Durumu
- Active
- Montaj
- Cable, Free Hanging
- Uzunluk
- 25.04mm
- Sıra Sayısı
- 1
- Genişlik
- 27.2mm
- Max Supply Voltage
- 320V
- Voltageiec
- 630V
- ECCN Kodu
- EAR99
- Wire Strip Length
- 10mm
- Connector Type
- Screw, Socket
- Fabrika Tedarik Süresi
- 7 Weeks
- Number Of Levels
- 1
- Depth
- 27.5mm
- Wire Gauge Max
- 30 AWG
- Insulation Height
- 1.083 27.51mm
- Akım Değeri
- 12A
