Volume pricing
- 1+ pcs$9.00
- 10+ pcs$8.49
- 100+ pcs$8.01
- 500+ pcs$7.55
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

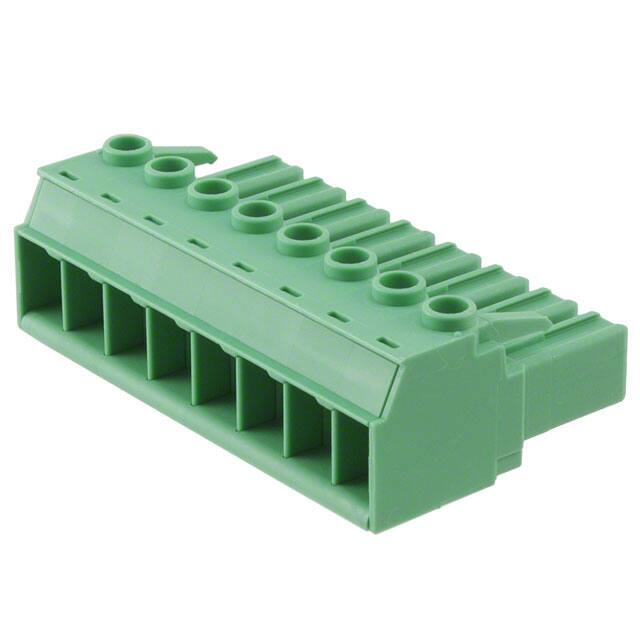

Specifications
- Kurşunsuz
- Lead Free
- Housing Material
- Polyamide (PA), Nylon
- Gerilim
- 600V
- Plug Wire Entry
- 180°
- Wire Gauge Min
- 8 AWG
- Pitch
- 0.300 7.62mm
- Özellikler
- Retention Latches (Non-Wire Side)
- Contact Mating Finish
- Tin
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Ambalaj
- Bulk
- Depth
- 35.5mm
- Material Flammability Rating
- UL94 V-0
- Wire Gauge Or Range Mm
- 0.2-10mm2
- Renk
- Green
- Wire Strip Length
- 10mm
- Connector Type
- Screw
- Fabrika Tedarik Süresi
- 7 Weeks
- Number Of Levels
- 1
- Wire Gauge Max
- 24 AWG
- Akım Değeri
- 41A
- Insulation Height
- 0.776 19.70mm
- Screw Size
- M3
- Nominal Gerilim
- 1kV
- Yayın Yılı
- 2013
- REACH Uyumluluk Kodu
- not_compliant
- Pozisyon Sayısı
- 8
- Gender
- Female
- Montaj Tipi
- Free Hanging (In-Line)
- Parça Durumu
- Active
- RoHS Durumu
- RoHS Compliant
- Orientation
- Right Angle
- Uzunluk
- 60.91mm
- Montaj
- Free Hanging
- ECCN Kodu
- EAR99
- Seri
- COMBICON PC
- Max Supply Voltage
- 1kV
- Wire Gauge Or Range Awg
- 8-24 AWG
- Akım
- 41A
- Material
- Polyamide, Tin
- Number Of Positions Per Level
- 8
