Volume pricing
- 1+ pcs$9.78
- 10+ pcs$9.22
- 100+ pcs$8.70
- 500+ pcs$8.21
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

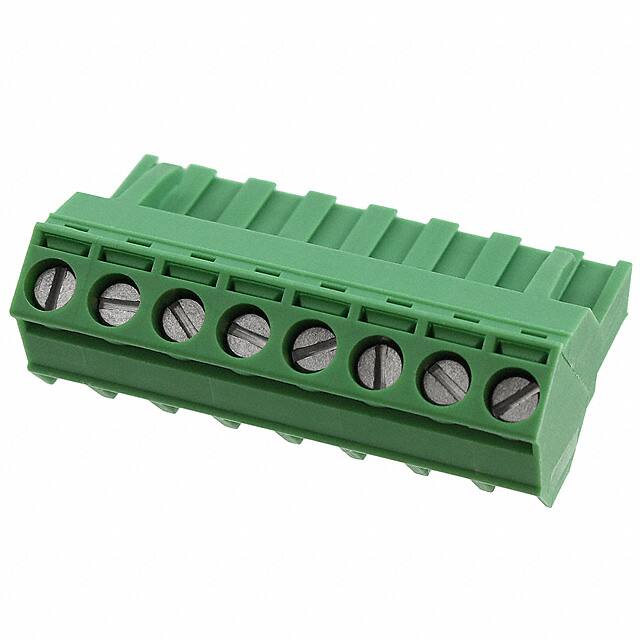

Specifications
- Weight
- 1.200205kg
- Number Of Contacts
- 8
- Yayın Yılı
- 2005
- Montaj
- Cable, Free Hanging, Plug-In
- Wire Gauge Or Range Mm
- 0.2-2.5mm2
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Gender
- Female
- Uzunluk
- 40mm
- Akım
- 10A
- Akım Değeri
- 12A
- Screw Size
- M3
- Voltageiec
- 630V
- Ambalaj
- Bulk
- Stripping Length
- 7mm
- Pitch
- 0.197 5.00mm
- Gerilim
- 300V
- Nominal Gerilim
- 250V
- Wire Cross Section
- 2.5 mm2
- Terminal Stili
- Screw - Rising Cage Clamp
- Onay Kuruluşu
- CSA, UL, cULus
- RoHS Durumu
- RoHS Compliant
- Sıra Sayısı
- 1
- Wire Gauge Min
- 12 AWG
- Wire Gauge Or Range Awg
- 12-30 AWG
- Tip
- Plug, Female Sockets
- Material Flammability Rating
- UL94 V-0
- Özellikler
- Retention Latches (Non-Wire Side)
- Genişlik
- 25.5mm
- Number Of Levels
- 1
- Seri
- COMBICON SMSTB
- Connector Type
- Screw, Socket
- Fabrika Tedarik Süresi
- 7 Weeks
- Housing Material
- Polyamide (PA), Nylon
- Max Current Rating
- 12A
- Parça Durumu
- Active
- Material
- Polyamide
- Kurşunsuz
- Lead Free
- Wire Gauge Max
- 30 AWG
- Currentul
- 15A
- Terminal
- Screw
