Volume pricing
- 1+ pcs$1.80
- 10+ pcs$1.70
- 100+ pcs$1.60
- 500+ pcs$1.51
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

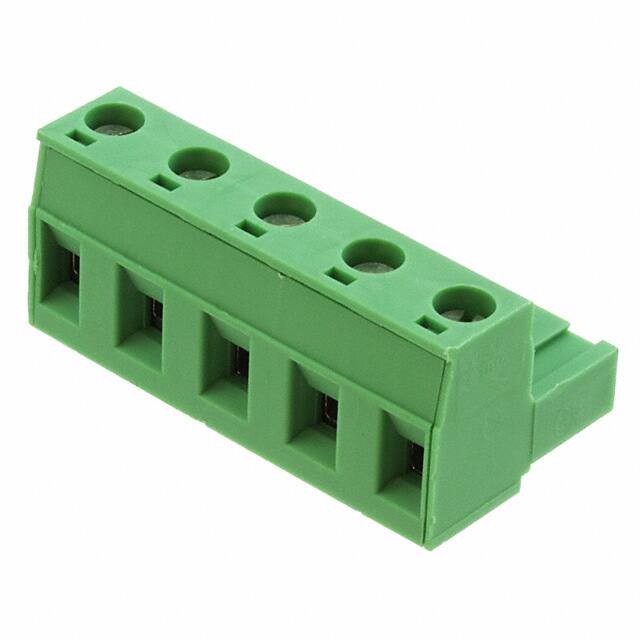

Specifications
- Renk
- Green
- Yükseklik
- 18.2mm
- Contact Plating
- Tin
- ECCN Kodu
- EAR99
- Montaj Tipi
- Free Hanging (In-Line)
- Insulation Height
- 0.591 15.00mm
- Kurşunsuz Kodu
- yes
- Number Of Decks
- 1
- Safety Approval
- UL
- Insulation Materials
- Nylon
- Number Of Ways
- 5
- Orientation
- Straight
- Flammability Rating
- UL94 V-0
- Plug Wire Entry
- 180°
- Additional Feature
- PA, 94V-0
- Currentul
- 15A
- Terminal
- Screw
- Wire Gauge Max
- 30 AWG
- Number Of Poles
- 5
- Depth
- 15mm
- Material
- Polyamide
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 4 Weeks
- Housing Material
- Polyamide (PA), Nylon
- Connector Type
- Screw, Socket
- Kurşunsuz
- Lead Free
- Genişlik
- 18.2mm
- Özellikler
- Retention Latches (Non-Wire Side)
- Material Flammability Rating
- UL94 V-0
- Tip
- Plug, Female Sockets
- Seri
- COMBICON GMSTB
- Number Of Levels
- 1
- REACH Uyumluluk Kodu
- unknown
- Nominal Gerilim
- 400V
- Wire Gauge Or Range Awg
- 12-30 AWG
- RoHS Durumu
- RoHS Compliant
- Sıra Sayısı
- 1
- Wire Gauge Min
- 12 AWG
- Onay Kuruluşu
- CB, CSA, UL, VDE
- Terminal Stili
- Screw - Rising Cage Clamp
