Volume pricing
- 1+ pcs$3.57
- 10+ pcs$3.37
- 100+ pcs$3.18
- 500+ pcs$3.00
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

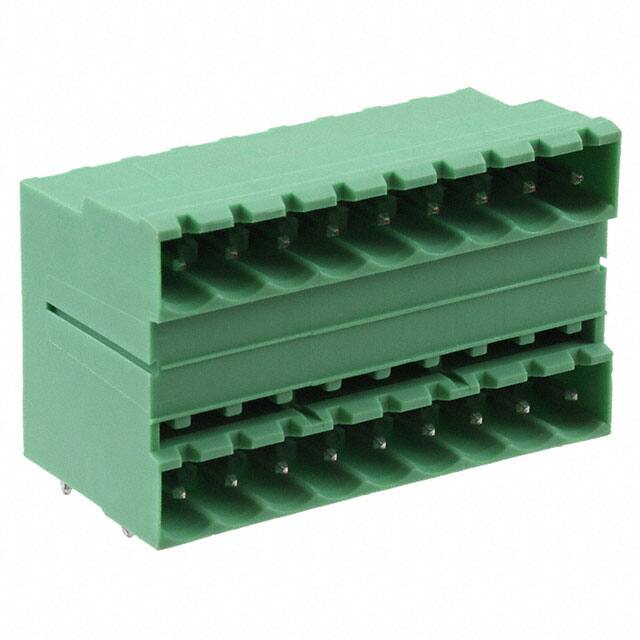

Specifications
- Flammability Rating
- UL94 V-0
- Ambalaj
- Bulk
- Insulation Height
- 1.122 28.50mm
- Material Flammability Rating
- UL94 V-0
- Sıra Sayısı
- 2
- Connector Type
- Plug
- Yayın Yılı
- 2003
- Fabrika Tedarik Süresi
- 4 Weeks
- Tip
- Header, Male Pins, Shrouded (4 Side)
- Weight
- 161.000004g
- Seri
- COMBICON MDSTB
- Nominal Gerilim
- 250V
- Kurşunsuz Kodu
- yes
- Contact Tail Length
- 0.138 3.50mm
- Uzunluk
- 47.72mm
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Montaj Tipi
- Through Hole
- Header Orientation
- 90°, Right Angle
- Contact Plating
- Tin
- Montaj
- Through Hole
- Number Of Ways
- 9
- Pozisyon Sayısı
- 18
- Depth
- 22mm
- Number Of Levels
- 2
- Pitch
- 0.200 5.08mm
- Genişlik
- 47.28mm
- Orientation
- Right Angle
- Kurşunsuz
- Lead Free
- Yükseklik
- 32mm
- Housing Material
- Polyamide (PA), Nylon
- Gerilim
- 300V
- Voltageiec
- 630V
- Parça Durumu
- Active
- Positions Per Level
- 9
- Safety Approval
- CSA; UL
- Max Current Rating
- 12A
- RoHS Durumu
- RoHS Compliant
- Terminal Stili
- Solder
- Akım
- 15A
- Number Of Decks
- 2
