Volume pricing
- 1+ pcs$2.29
- 10+ pcs$2.16
- 100+ pcs$2.04
- 500+ pcs$1.92
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

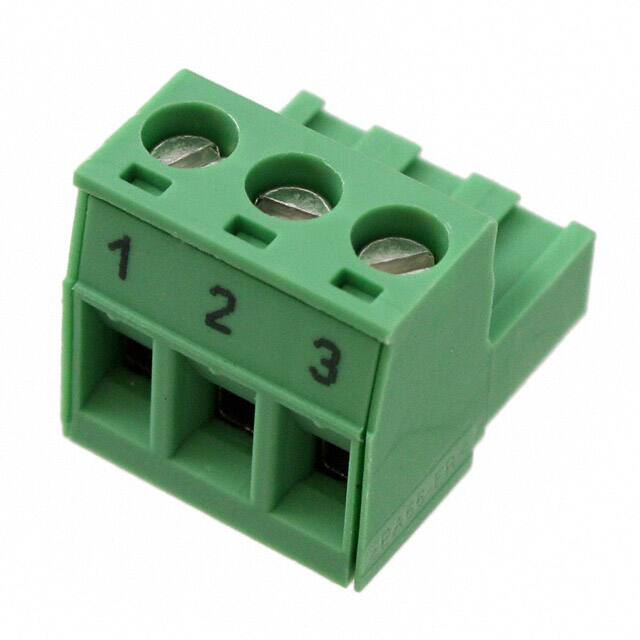

Specifications
- Wire Gauge Or Range Awg
- 12-30 AWG
- Yükseklik
- 15.24mm
- Pitch
- 0.200 5.08mm
- Number Of Levels
- 1
- Number Of Positions Per Level
- 3
- Montaj
- Cable, Free Hanging, Plug-In
- Contact Plating
- Tin
- Akım
- 15A
- Material
- Polyamide
- Max Current Rating
- 12A
- Safety Approval
- UL; VDE; CSA
- Kurşunsuz Kodu
- yes
- Nominal Gerilim
- 250V
- Seri
- COMBICON MSTB
- Sıra Sayısı
- 1
- Weight
- 5.399989g
- Tip
- Plug, Female Sockets
- Flammability Rating
- UL94 V-0
- Insulation Height
- 0.591 15.00mm
- Plug Wire Entry
- 180°
- Gender
- Female
- Uzunluk
- 15mm
- REACH Uyumluluk Kodu
- not_compliant
- Housing Material
- Polyamide (PA), Nylon
- Gerilim
- 300V
- Genişlik
- 10.16mm
- Orientation
- Right Angle
- Stripping Length
- 7mm
- Number Of Ways
- 3
- Akım Değeri
- 12A
- Renk
- Green
- Number Of Decks
- 1
- ECCN Kodu
- EAR99
- Screw Size
- M3
- RoHS Durumu
- RoHS Compliant
- Terminal Stili
- Screw - Rising Cage Clamp
- Wire Gauge Or Range Mm
- 0.2-2.5mm2
- Parça Durumu
- Active
- Voltageiec
- 630V
- Özellikler
- Positions Stamped, Retention Latches (Non-Wire Side)
