Volume pricing
- 1+ pcs$1.65
- 10+ pcs$1.56
- 100+ pcs$1.47
- 500+ pcs$1.38
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

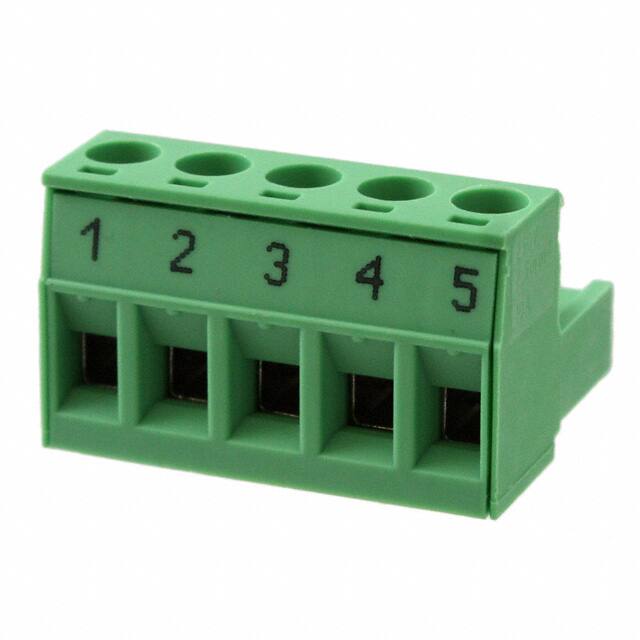

Specifications
- Number Of Ways
- 5
- Stripping Length
- 7mm
- Montaj
- Free Hanging, Plug-In
- Number Of Poles
- 5
- Contact Plating
- Tin
- Gerilim
- 300V
- Wire Gauge Or Range Awg
- 12-30 AWG
- Yükseklik
- 18.3mm
- Housing Material
- Polyamide (PA), Nylon
- Number Of Levels
- 1
- Pitch
- 0.200 5.08mm
- Genişlik
- 25.4mm
- Terminal Stili
- Screw - Rising Cage Clamp
- RoHS Durumu
- RoHS Compliant
- Screw Size
- M3
- Safety Approval
- UL; VDE; CSA
- Max Current Rating
- 12A
- Voltageiec
- 630V
- Wire Gauge Or Range Mm
- 0.2-2.5mm2
- Parça Durumu
- Active
- Renk
- Green
- Akım Değeri
- 12A
- Material
- Polyamide
- Akım
- 15A
- ECCN Kodu
- EAR99
- Yayın Yılı
- 2008
- Tip
- Plug, Female Sockets
- Weight
- 8.77001g
- Fabrika Tedarik Süresi
- 6 Weeks
- Material Flammability Rating
- UL94 V-0
- Connector Type
- Screw, Socket
- Wire Gauge Min
- 12 AWG
- Insulation Height
- 0.591 15.00mm
- Flammability Rating
- UL94 V-0
- Ambalaj
- Bulk
- Nominal Gerilim
- 250V
- Kurşunsuz Kodu
- yes
- Seri
- COMBICON MSTB
- Özellikler
- Positions Stamped, Retention Latches (Non-Wire Side)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
