Volume pricing
- 1+ pcs$0.53
- 10+ pcs$0.50
- 100+ pcs$0.47
- 500+ pcs$0.45
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

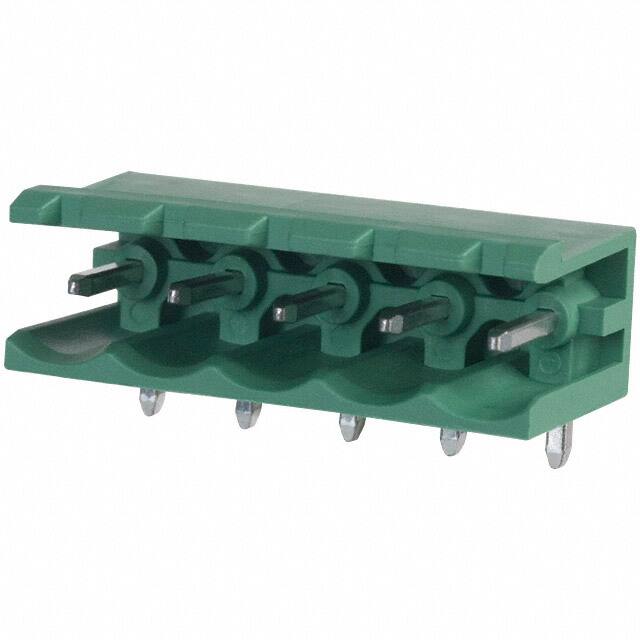

Specifications
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Additional Feature
- STANDARD: UL 94V-0, PA, SAFETY APPROVAL :VDE
- Terminal Stili
- Solder
- Thickness
- 20.32mm
- Material Flammability Rating
- UL94 V-0
- Gerilim
- 300V
- Akım Değeri
- 12A
- Header Orientation
- 90°, Right Angle
- Genişlik
- 25.4mm
- Uzunluk
- 25.4mm
- Renk
- Green
- Depth
- 12mm
- Number Of Ways
- 5
- Pitch
- 0.200 5.08mm
- Contact Mating Finish
- Tin
- Onay Kuruluşu
- CSA, EN, UL, VDE
- Number Of Poles
- 5
- Weight
- 151.999994g
- Max Current Rating
- 12A
- Montaj Tipi
- Through Hole
- Voltage Rated Dc
- 250V
- Akım
- 15A
- Number Of Levels
- 1
- Flammability Rating
- UL94 V-0
- Pozisyon Sayısı
- 5
- Yayın Yılı
- 2005
- Contact Materials
- Copper, Tin
- Yükseklik
- 12.1mm
- Tip
- Header, Male Pins, Shrouded (2 Side)
- Sıra Sayısı
- 1
- RoHS Durumu
- RoHS Compliant
- Seri
- COMBICON MSTB
- Housing Material
- Polyamide (PA), Nylon
- Insulation Height
- 0.339 8.61mm
- Number Of Decks
- 1
- ECCN Kodu
- EAR99
- Nominal Gerilim
- 250V
- Montaj
- Through Hole
- Parça Durumu
- Active
- Kurşunsuz Kodu
- yes
