Volume pricing
- 1+ pcs$2.69
- 10+ pcs$2.54
- 100+ pcs$2.39
- 500+ pcs$2.26
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

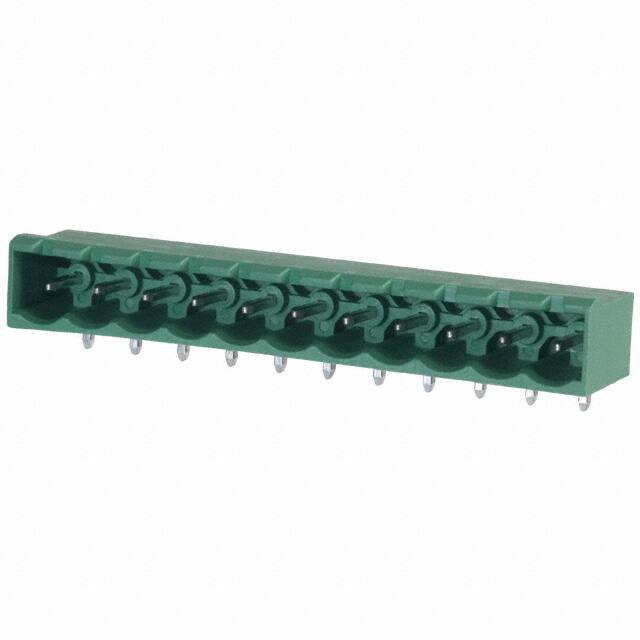

Specifications
- HTS Kodu
- 8536.69.40.40
- Akım Değeri
- 12A
- Sıra Sayısı
- 1
- Flammability Rating
- UL94 V-0
- Number Of Levels
- 1
- Montaj
- Through Hole
- Depth
- 12mm
- Renk
- Green
- Akım
- 15A
- Yayın Yılı
- 2010
- Orientation
- Right Angle
- Number Of Ways
- 11
- Ambalaj
- Bulk
- Voltage Rated Dc
- 400V
- Material Flammability Rating
- UL94 V-0
- Safety Approval
- UL
- Montaj Tipi
- Through Hole
- Seri
- COMBICON MSTBA
- RoHS Durumu
- RoHS Compliant
- Contact Mating Finish
- Tin
- Pitch
- 0.197 5.00mm
- Parça Durumu
- Active
- Number Of Poles
- 11
- Max Current Rating
- 12A
- Number Of Decks
- 1
- Nominal Gerilim
- 250V
- Insulation Height
- 0.339 8.61mm
- Contact Tail Length
- 0.138 3.50mm
- Pozisyon Sayısı
- 11
- Housing Material
- Polyamide (PA), Nylon
- Kurşunsuz
- Lead Free
- ECCN Kodu
- EAR99
- Weight
- 1.50003kg
- Additional Feature
- PBT, 94V-0
- Fabrika Tedarik Süresi
- 4 Weeks
- Genişlik
- 12mm
- Terminal Stili
- Solder
- Onay Kuruluşu
- CSA, UL
- Gerilim
- 300V
- Header Orientation
- 90°, Right Angle
