Specifications
- Nominal Gerilim
- 250V
- Contact Tail Length
- 0.138 3.50mm
- Max Current Rating
- 12A
- Genişlik
- 22.24mm
- Number Of Contacts
- 4
- Housing Material
- Polyamide (PA), Nylon
- Voltage Rated Ac
- 250V
- Currentul
- 15A
- Gerilim
- 300V
- Voltageiec
- 400V
- Onay Kuruluşu
- CSA, UL
- Contact Materials
- Tin
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Header Orientation
- 90°, Right Angle
- Uzunluk
- 22.32mm
- Min. Çalışma Sıcaklığı
- -40°C
- Tip

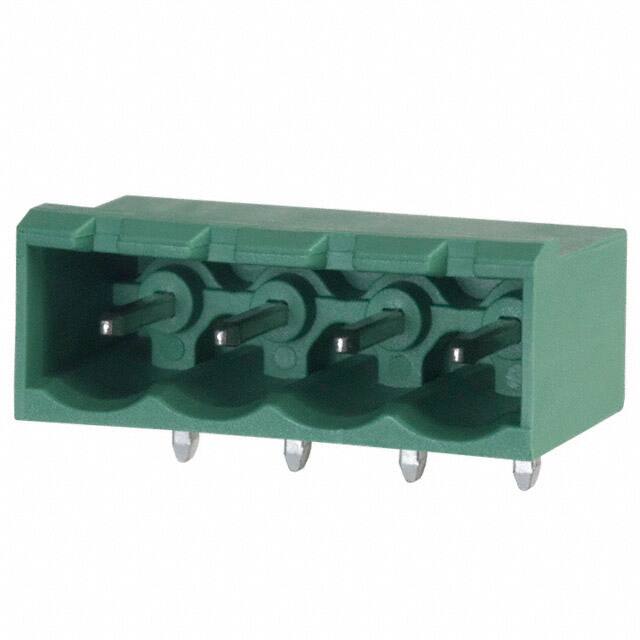

- Header, Male Pins, Shrouded (4 Side)
- Sıra Sayısı
- 1
- Flammability Rating
- UL94 V-0
- Depth
- 12mm
- Gender
- Male
- Akım
- 15A
- Orientation
- Right Angle
- Housing Color
- Green
- Renk
- Green
- Positions Per Level
- 4
- Ambalaj
- Bulk
- Lead Pitch
- 5.08mm
- Voltage Rated Dc
- 250V
- Connector Type
- Plug
- Number Of Poles
- 4
- Pitch
- 0.200 5.08mm
- Material Flammability Rating
- UL94 V-0
- Montaj Tipi
- Through Hole
- RoHS Durumu
- RoHS Compliant
- Insulation Height
- 0.339 8.61mm
- Pozisyon Sayısı
- 4
- Terminal Stili
- Solder
- Kurşunsuz
- Lead Free
- Contact Plating
- Tin
