Volume pricing
- 1+ pcs$8.62
- 10+ pcs$8.14
- 100+ pcs$7.68
- 500+ pcs$7.24
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

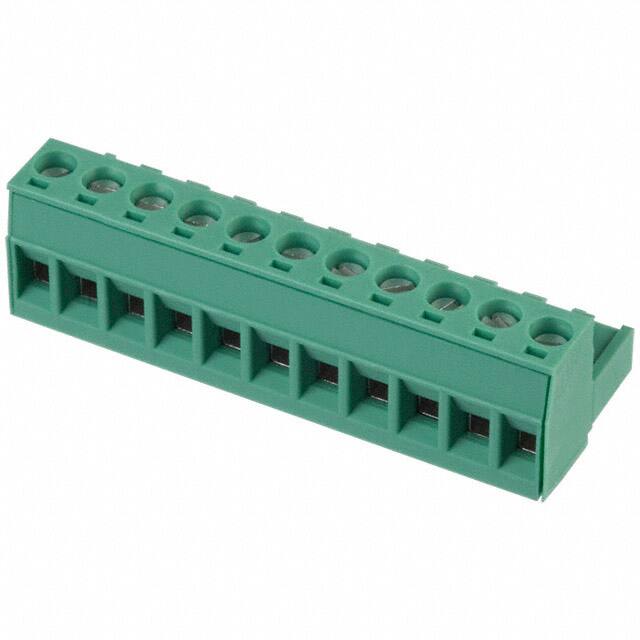

Specifications
- Genişlik
- 55mm
- Akım
- 15A
- ECCN Kodu
- EAR99
- Flammability Rating
- UL94 V-0
- Nominal Gerilim
- 250V
- Insulation Materials
- Nylon
- Wire Gauge Or Range Awg
- 12-30 AWG
- Insulation Height
- 0.591 15.00mm
- Kurşunsuz
- Lead Free
- Fabrika Tedarik Süresi
- 6 Weeks
- Seri
- COMBICON MSTB
- Kurşunsuz Kodu
- yes
- Safety Approval
- UL
- Connector Type
- Screw, Socket
- Uzunluk
- 55mm
- Tip
- Plug, Female Sockets
- Yayın Yılı
- 2008
- Gerilim
- 300V
- Wire Cross Section
- 2.5 mm2
- Parça Durumu
- Active
- Orientation
- Right Angle
- Wire Gauge Min
- 24 AWG
- Number Of Decks
- 1
- Radyasyon Dayanımı
- No
- Max Supply Voltage
- 250V
- Pitch
- 0.197 5.00mm
- Renk
- Green
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Özellikler
- Retention Latches (Non-Wire Side)
- Ambalaj
- Bulk
- Wire Gauge Or Range Mm
- 0.2-2.5mm2
- Screw Size
- M3
- Depth
- 18.2mm
- Montaj Tipi
- Free Hanging (In-Line)
- Wire Gauge Max
- 12 AWG
- HTS Kodu
- 8536.69.40.40
- Number Of Contacts
- 11
- Housing Material
- Polyamide (PA), Nylon
- Material
- Polyamide
- Akım Değeri
- 12A
