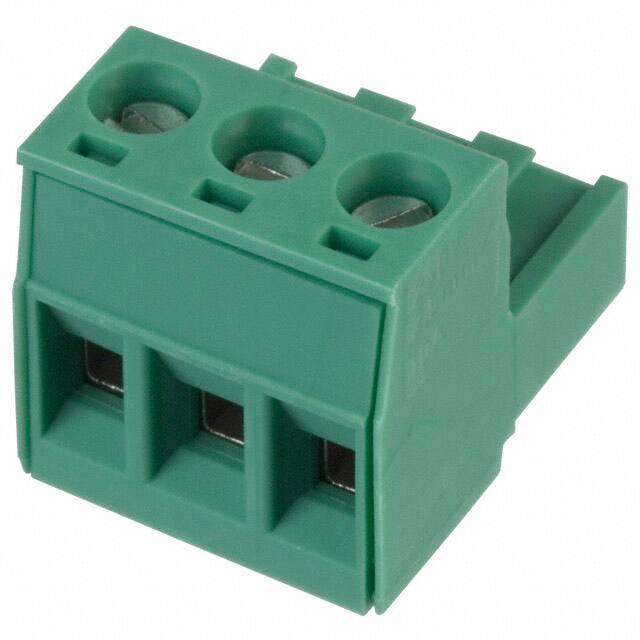

Specifications
- Onay Kuruluşu
- CB, CSA, UL, VDE, cULus
- Number Of Levels
- 1
- RoHS Durumu
- RoHS Compliant
- Voltageiec
- 630V
- Material Flammability Rating
- UL94 V-0
- Additional Feature
- PA, 94V-0
- Yükseklik
- 15mm
- Max Current Rating
- 12A
- Montaj
- Cable, Free Hanging, Plug-In
- Weight
- 1.999889kg
- Terminal
- Screw
- Number Of Ways
- 3
- Sıra Sayısı
- 1
- Gender
- Female
- Contact Plating
- Tin
- Plug Wire Entry
- 180°
- Terminal Stili
- Screw - Rising Cage Clamp
- Stripping Length
- 7mm
- Wire Gauge Or Range Mm
- 0.2-2.5mm2
- Ambalaj
- Bulk
- Özellikler
- Retention Latches (Non-Wire Side)
- Screw Size
- M3
- Wire Gauge Max
- 30 AWG
- Montaj Tipi
- Free Hanging (In-Line)
- Depth
- 18.2mm
- Number Of Contacts
- 3
- Material
- Polyamide
- Housing Material
- Polyamide (PA), Nylon
- Akım Değeri
- 12A
- Safety Approval
- UL
- Uzunluk
- 15mm
- Connector Type
- Screw, Socket
- Tip
- Plug, Female Sockets
- Yayın Yılı
- 2008
- Gerilim
- 300V
- Orientation
- Right Angle
- Wire Gauge Min
- 12 AWG
- Parça Durumu
- Active
- Number Of Decks
- 1
- Max Supply Voltage
- 250V
