Volume pricing
- 1+ pcs$0.29
- 10+ pcs$0.27
- 100+ pcs$0.25
- 500+ pcs$0.24
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Contact Mating Finish
- Tin
- Onay Kuruluşu
- CSA, UL
- Thickness
- 5mm
- Additional Feature
- STANDARD: UL 94V-0, PA
- Yükseklik
- 12mm
- Number Of Levels
- 1
- Material Flammability Rating
- UL94 V-0
- Voltageiec
- 400V
- RoHS Durumu
- RoHS Compliant
- Max Current Rating
- 12A
- Weight
- 1.08899g
- Montaj
- Through Hole
- Number Of Ways
- 2
- Fastening Method
- CONNECTOR
- Sıra Sayısı
- 1
- Terminal Stili
- Solder
- Voltage Rated Dc
- 320V
- Ambalaj
- Bulk
- Contact Tail Length
- 0.138 3.50mm
- Contact Materials
- Copper, Tin
- Montaj Tipi
- Through Hole
- Depth
- 12mm
- HTS Kodu
- 8536.69.40.40
- Pozisyon Sayısı
- 2
- Housing Material
- Polyamide (PA), Nylon
- Number Of Poles
- 2
- Akım Değeri
- 12A
- Safety Approval
- CB; CSA; CUL; EAC; UL; VDE
- Uzunluk
- 10mm
- Yayın Yılı
- 2003

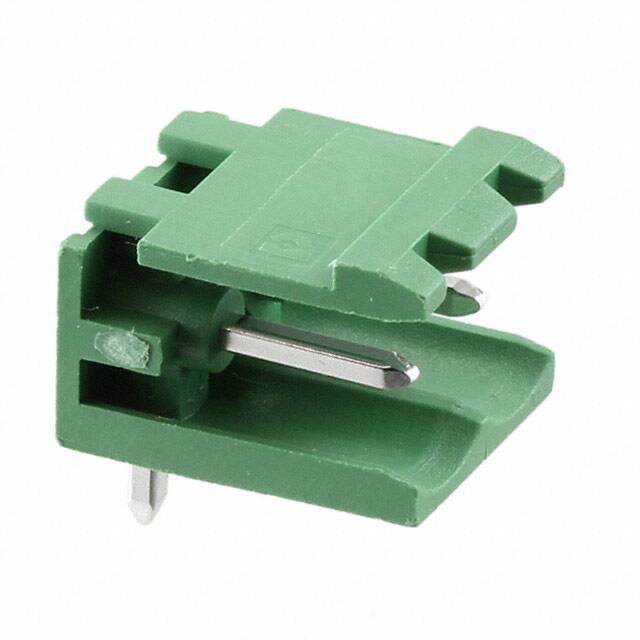

- Tip
- Header, Male Pins, Shrouded (2 Side)
- Gerilim
- 300V
- Header Orientation
- 90°, Right Angle
- Parça Durumu
- Active
- Orientation
- Right Angle
- Number Of Decks
- 1
- Pitch
- 0.197 5.00mm
- Renk
- Green
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Genişlik
- 12.1mm
