Volume pricing
- 1+ pcs$0.44
- 10+ pcs$0.42
- 100+ pcs$0.39
- 500+ pcs$0.37
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

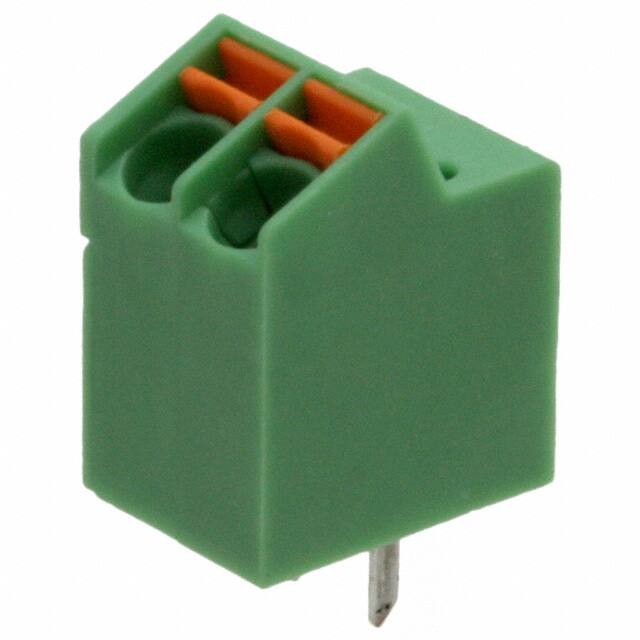

Specifications
- Pitch
- 0.138 3.50mm
- Wire Gauge Max
- 26 AWG
- Kurşunsuz Kodu
- yes
- Number Of Ways
- 2
- Orientation
- Right Angle
- RoHS Durumu
- RoHS Compliant
- Wire Gauge Min
- 26 AWG
- Gender
- Male
- Montaj
- Through Hole
- Safety Approval
- UL
- Weight
- 1.32999g
- Nominal Gerilim
- 200V
- Number Of Contacts
- 2
- Seri
- COMBICON SPTA
- Max Current Rating
- 9A
- Uzunluk
- 7.6mm
- Additional Feature
- PA, UL 94V0
- Akım
- 10A
- Terminal
- Screwless
- Wire Gauge
- 16-26 AWG
- Fastening Method
- SPRING LOADED
- Number Of Decks
- 1
- Material
- Polyamide
- Fabrika Tedarik Süresi
- 12 Weeks
- Wire Termination
- Screwless - Spring Cage, Tension Clamp
- Housing Material
- Polyamide (PA), Nylon
- Number Of Levels
- 1
- Stripping Length
- 8mm
- Gerilim
- 300V
- Ambalaj
- Bulk
- ECCN Kodu
- EAR99
- Voltage Rated Ac
- 160V
- Montaj Tipi
- Through Hole
- Akım Değeri
- 9A
- Genişlik
- 10mm
- Onay Kuruluşu
- CB, VDE, cULus
- HTS Kodu
- 8536.69.40.40
- Mating Orientation
- 25° (155°) Angle with Board
- Sıra Sayısı
- 1
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
