Volume pricing
- 1+ pcs$6.28
- 10+ pcs$5.93
- 100+ pcs$5.59
- 500+ pcs$5.27
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Akım
- 55A
- Gerilim
- 600V
- Plug Wire Entry
- 180°
- Connector Type
- Screw
- Akım Değeri
- 76A
- Parça Durumu
- Active
- Montaj Tipi
- Free Hanging (In-Line)
- Seri
- COMBICON PC
- Currentiec
- 76A
- Ambalaj
- Bulk
- Pozisyon Sayısı
- 3
- Nominal Gerilim
- 1kV

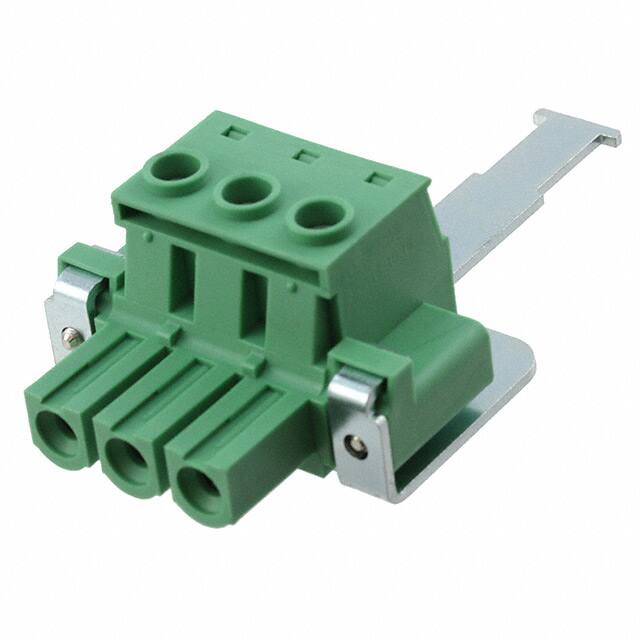

- Tip
- Plug, Female Sockets
- Flammability Rating
- UL94 V-0
- Number Of Levels
- 1
- ECCN Kodu
- EAR99
- Contact Mating Finish
- Silver
- Wire Gauge Or Range Awg
- 6-20 AWG
- Fabrika Tedarik Süresi
- 4 Weeks
- RoHS Durumu
- RoHS Compliant
- Wire Gauge Min
- 18 AWG
- Terminal Stili
- Screw - Rising Cage Clamp
- Pitch
- 0.400 10.16mm
- Housing Material
- Polyamide (PA), Nylon
- REACH Uyumluluk Kodu
- not_compliant
- Wire Strip Length
- 12mm
- Özellikler
- Mating Flange, Strain Relief
- Voltageiec
- 1kV
- Material Flammability Rating
- UL94 V-0
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Wire Gauge Or Range Mm
- 0.75-16mm2
- Wire Gauge Max
- 6 AWG
- Screw Size
- M4
- Yayın Yılı
- 2011
- Montaj
- Free Hanging
- Renk
- Green
