Volume pricing
- 1+ pcs$10.73
- 10+ pcs$10.13
- 100+ pcs$9.55
- 500+ pcs$9.01
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

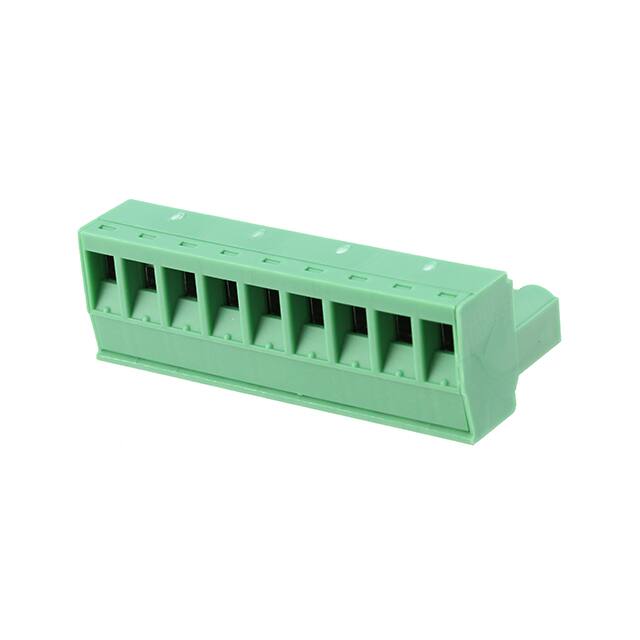

Specifications
- Wire Gauge Or Range Awg
- 12-30 AWG
- Akım Değeri
- 12A
- Sıra Sayısı
- 1
- Contact Mating Finish
- Tin
- Flammability Rating
- UL94 V-2
- Montaj Tipi
- Free Hanging (In-Line)
- Özellikler
- Retention Latches (Non-Wire Side)
- Ambalaj
- Bulk
- Weight
- 129.999998g
- Number Of Positions Per Level
- 9
- Montaj
- Free Hanging
- Insulation Height
- 0.591 15.00mm
- Currentiec
- 12A
- Number Of Levels
- 1
- Voltageiec
- 630V
- Plug Wire Entry
- 180°
- Terminal Stili
- Screw - Rising Cage Clamp
- Pitch
- 0.200 5.08mm
- Housing Material
- Polyamide (PA), Nylon
- Tip
- Plug, Female Sockets
- Wire Cross Section
- 2.5 mm2
- Kurşunsuz Kodu
- yes
- Renk
- Green
- Seri
- COMBICON MSTBT
- Wire Strip Length
- 7mm
- Fabrika Tedarik Süresi
- 4 Weeks
- Number Of Decks
- 1
- Nominal Gerilim
- 250V
- Yayın Yılı
- 2011
- RoHS Durumu
- RoHS Compliant
- Wire Gauge Min
- 12 AWG
- Parça Durumu
- Active
- Wire Gauge Max
- 30 AWG
- Screw Size
- M3
- Safety Approval
- UL
- Gerilim
- 300V
- Akım
- 15A
- Material Flammability Rating
- UL94 V-0
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Wire Gauge Or Range Mm
- 0.2-2.5mm2
