Volume pricing
- 1+ pcs$4.33
- 10+ pcs$4.08
- 100+ pcs$3.85
- 500+ pcs$3.63
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

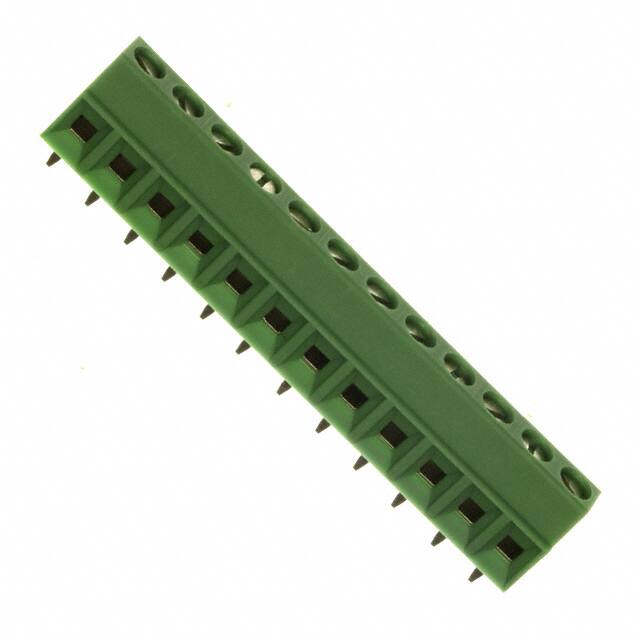

Specifications
- Terminal And Terminal Block Type
- BARRIER STRIP TERMINAL BLOCK
- Max Current Rating
- 12A
- Wire Gauge Min
- 16 AWG
- ECCN Kodu
- EAR99
- Screw Thread
- M2
- Mating Orientation
- Horizontal with Board
- Number Of Contacts
- 12
- Stripping Length
- 5mm
- Connector Type
- Screw
- Lead Pitch
- 3.81mm
- Kurşunsuz Kodu
- yes
- Reach Svhc
- No SVHC
- Number Of Ways
- 12
- Fabrika Tedarik Süresi
- 7 Weeks
- Contact Materials
- Tin
- RoHS Durumu
- RoHS Compliant
- Housing Material
- Polyamide (PA), Nylon
- Renk
- Green
- Voltage Rated Ac
- 160V
- Genişlik
- 45.71mm
- Seri
- COMBICON MKDS
- HTS Kodu
- 8536.69.40.40
- Orientation
- Straight
- Sıra Sayısı
- 1
- Montaj
- Through Hole
- Montaj Tipi
- Through Hole
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Pitch
- 0.150 3.81mm
- Number Of Levels
- 1
- Number Of Decks
- 1
- Insulation Materials
- Nylon
- Wirecable Gauge
- 16 AWG
- Test Voltage
- 2.5kV
- Radyasyon Dayanımı
- No
- Wire Gauge
- 16-30 AWG
- Additional Feature
- PA, 94V-0
- Yükseklik
- 12mm
- Safety Approval
- UL
- Wire Gauge Max
- 26 AWG
- Maks. Çalışma Sıcaklığı
- 100°C
