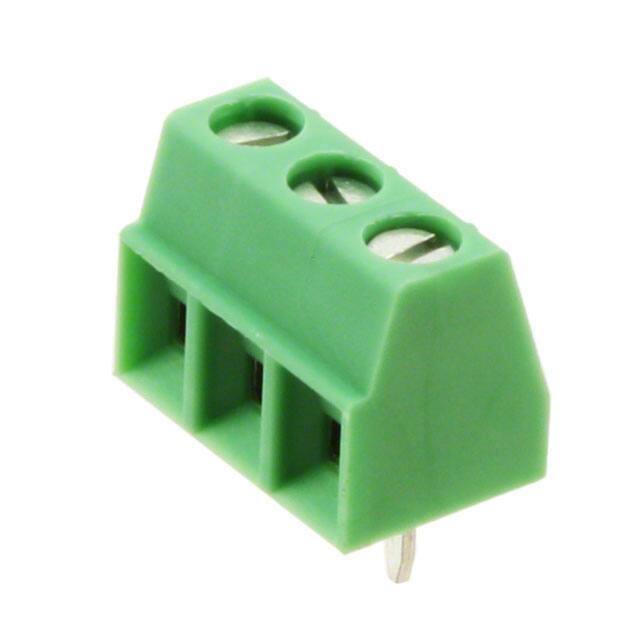

1727023

Specifications

Insulation Materials

Nylon

Housing Material

Polyamide (PA), Nylon

Lead Pitch

3.81mm

Akım Değeri

13.5A

Mating Orientation

Horizontal with Board

Contact Materials

Tin

Flammability Rating

UL94 V-0

Screw Thread

M2

Orientation

Straight

Akım

10A

Yükseklik

12mm

Terminal And Terminal Block Type

BARRIER STRIP TERMINAL BLOCK

Sıra Sayısı

1

Wire Gauge Min

16 AWG

Terminal

Screw

Wire Termination

Screw - Rising Cage Clamp

Uzunluk

7.3mm

Additional Feature

STANDARD: UL 94V-0, PA

Connector Type

PCB, Screw, Terminal Block

Reach Svhc

Unknown

Safety Approval

CB; CCA; CSA; CUL; EAC; SEV

Nominal Gerilim

300V

Wirecable Gauge

26 AWG

Montaj

Through Hole

Pitch

0.150 3.81mm

Fabrika Tedarik Süresi

4 Weeks

Parça Durumu

Active

Number Of Levels

1

Voltage Rated Ac

160V

Wire Gauge

16-30 AWG

Max Current Rating

12A

Number Of Decks

1

RoHS Durumu

RoHS Compliant

Onay Kuruluşu

CSA, UL

Yayın Yılı

2001

Max Supply Voltage

160V

Kurşunsuz

Lead Free

Weight

1.649999g

Wire Gauge Max

30 AWG

Seri

COMBICON MKDS
