Volume pricing
- 1+ pcs$4.24
- 10+ pcs$4.00
- 100+ pcs$3.77
- 500+ pcs$3.56
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

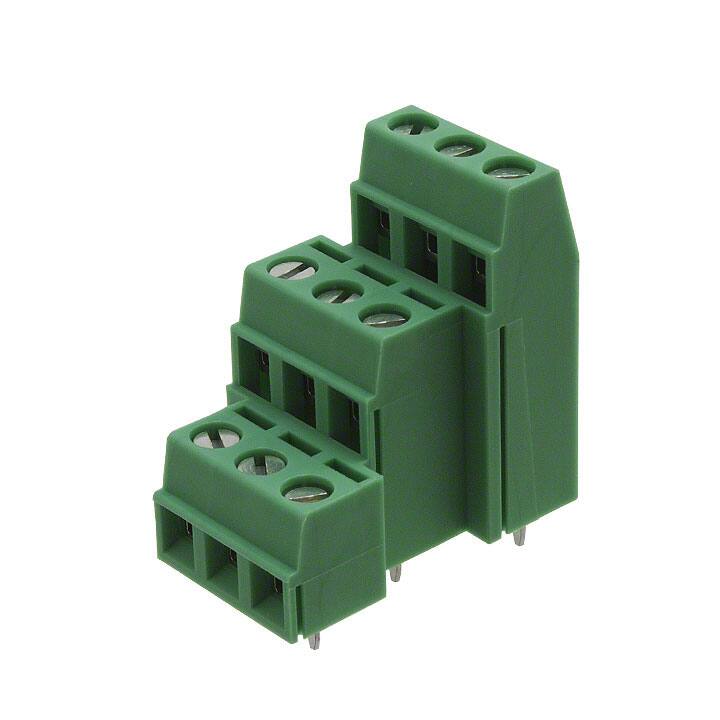

Specifications
- Renk
- Green
- Mating Orientation
- Horizontal with Board
- Radyasyon Dayanımı
- No
- Wire Gauge Max
- 26 AWG
- Uzunluk
- 22.86mm
- Genişlik
- 31.7mm
- Yükseklik
- 28.1mm
- Max Current Rating
- 10A
- Orientation
- Straight
- Montaj Tipi
- Through Hole
- Yayın Yılı
- 2011
- Weight
- 28.349523g
- Seri
- COMBICON MK3DSN
- Housing Material
- Polyamide (PA), Nylon
- Wire Gauge
- 14-30 AWG
- Wire Gauge Min
- 14 AWG
- Montaj
- Through Hole
- Ambalaj
- Bulk
- Safety Approval
- UL
- Terminal
- Solder
- Max Supply Voltage
- 250V
- Sıra Sayısı
- 1
- Fabrika Tedarik Süresi
- 4 Weeks
- Connector Type
- Screw
- Screw Thread
- M3
- Contact Materials
- Tin
- Nominal Gerilim
- 400V
- Kurşunsuz
- Lead Free
- Wire Termination
- Screw - Rising Cage Clamp
- Parça Durumu
- Active
- Pin Sayısı
- 9
- Akım Değeri
- 10A
- Özellikler
- Interlocking (Side)
- Terminal And Terminal Block Type
- BARRIER STRIP TERMINAL BLOCK
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Number Of Decks
- 1
- Pitch
- 0.200 5.08mm
- Number Of Ways
- 3
- Depth
- 28.1mm
- Flammability Rating
- UL94 V-0
