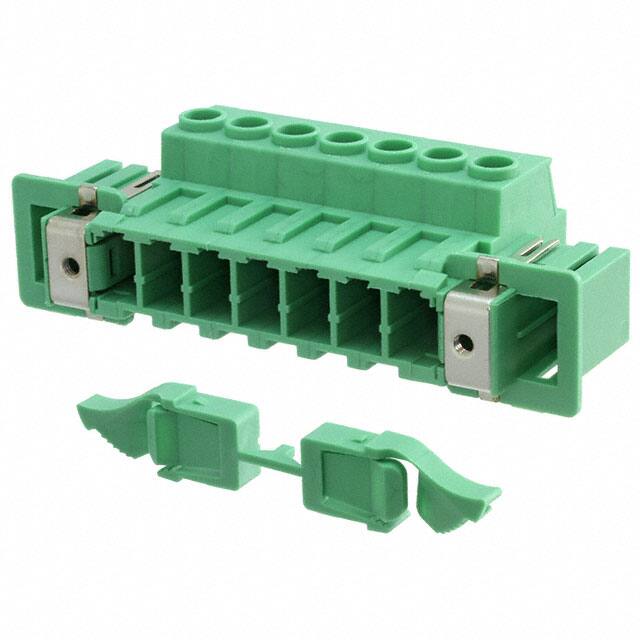

1716661

Specifications

Gerilim

600V

Akım Değeri

41A

Rear Panel Wire Connection

Bolt/Screw Clamp - Wire Entry Parallel to Panel

Özellikler

Threaded Mating Lock, Shield Connection Front Side

HTS Kodu

8536.69.40.40

Yayın Yılı

2011

Panel Mount Type

2 Piece, Snap Lock - Front Flange

Panel Thickness

0.039 ~ 0.118 1.0 ~ 3.0mm

Safety Approval

UL

Flammability Rating

UL94 V-0

Number Of Decks

1

Akım

41A

REACH Uyumluluk Kodu

unknown

Number Of Positions Per Level

7

Pitch

0.300 7.62mm

Terminal And Terminal Block Type

BARRIER STRIP TERMINAL BLOCK

Genişlik

3.463 87.96mm

RoHS Durumu

RoHS Compliant

Renk

Green

Wire Gauge Max

24 AWG

Contact Plating

Tin

Housing Material

Plastic

Number Of Levels

1

Fabrika Tedarik Süresi

4 Weeks

Additional Feature

PA, UL 94V-0

Number Of Ways

7

ECCN Kodu

EAR99

Wire Gauge

8-24 AWG

Nominal Gerilim

500V

Front Panel Wire Connection

Header, Male Pins

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Seri

COMBICON DFK-PC

Wire Gauge Min

8 AWG

Weight

42.619993g

Sıra Sayısı

1
