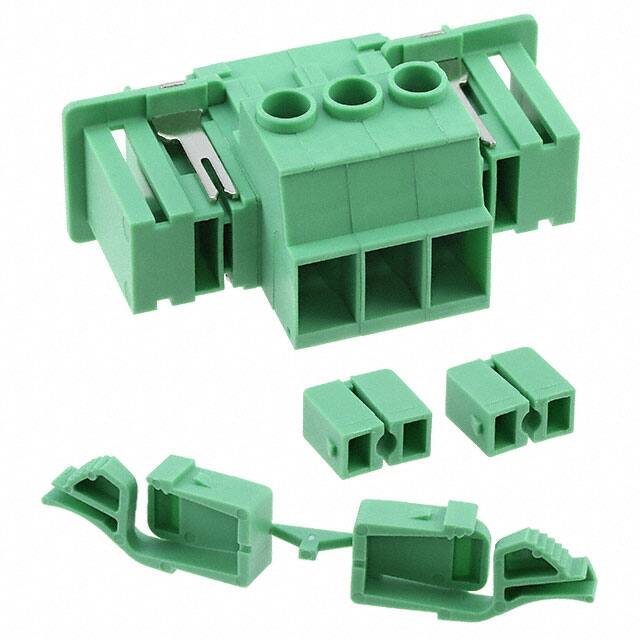

1716629

Specifications

Wire Gauge Min

8 AWG

Yükseklik

48.95mm

Weight

400.000006g

Sıra Sayısı

1

Uzunluk

26.24mm

Seri

COMBICON DFK-PC

Kurşunsuz Kodu

yes

Parça Durumu

Active

Terminal

Screw

Nem Hassasiyeti (MSL)

1 (Unlimited)

Front Panel Wire Connection

Header, Male Pins

Nominal Gerilim

500V

Number Of Ways

3

Wire Gauge

8-24 AWG

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

7 Weeks

Additional Feature

PA, UL 94V-0

Number Of Levels

1

Housing Material

Polyamide

Wire Gauge Max

24 AWG

Renk

Green

Contact Materials

Tin

RoHS Durumu

RoHS Compliant

Max Current Rating

41A

Pitch

0.300 7.62mm

Terminal And Terminal Block Type

BARRIER STRIP TERMINAL BLOCK

Genişlik

2.263 57.48mm

Number Of Decks

1

Akım

41A

REACH Uyumluluk Kodu

not_compliant

Connector Type

Plug

Number Of Positions Per Level

3

Flammability Rating

UL94 V-0

Safety Approval

UL

Panel Thickness

0.039 ~ 0.118 1.0 ~ 3.0mm

Yayın Yılı

2011

Panel Mount Type

2 Piece, Snap Lock - Front Flange

Max Supply Voltage

1kV

Orientation

Right Angle

Gerilim

600V
