Request a quote for pricing
Priced by quantity and lead time.
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

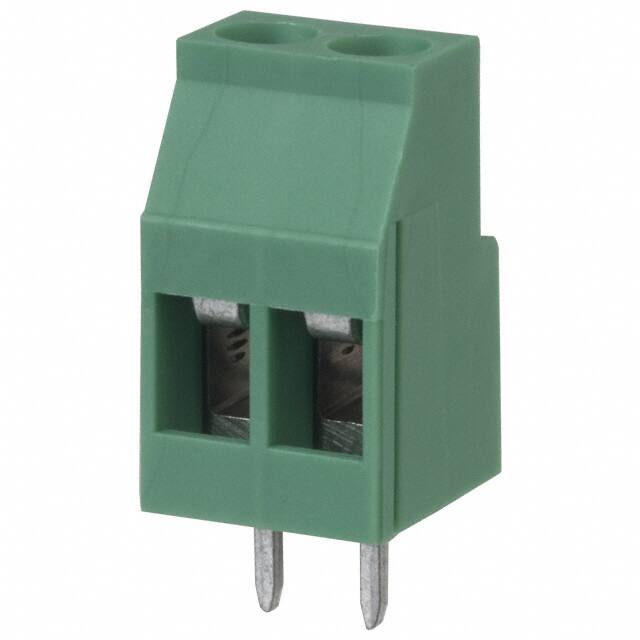

Specifications
- Fabrika Tedarik Süresi
- 7 Weeks
- Kurşunsuz
- Lead Free
- Montaj Tipi
- Through Hole
- Connector Type
- PCB, Screw, Terminal Block
- Maks. Çalışma Sıcaklığı
- 105°C
- Onay Kuruluşu
- CSA, UL, cULus
- Voltage Rated Ac
- 250V
- Material
- Nylon
- Number Of Levels
- 1
- Number Of Contacts
- 2
- Positions Per Level
- 2
- Number Of Circuits
- 2
- Orientation
- Straight
- Test Voltage
- 4kV
- Screw Thread
- M3
- Nominal Gerilim
- 400V
- Sıra Sayısı
- 1
- Akım
- 15A
- Mating Orientation
- Horizontal with Board
- Yükseklik
- 23mm
- Yayın Yılı
- 2010
- Housing Material
- Polyamide (PA), Nylon
- Weight
- 4.000004g
- Min. Çalışma Sıcaklığı
- -40°C
- Ambalaj
- Bulk
- Özellikler
- Interlocking (Side)
- Terminal
- Solder
- Pin Sayısı
- 2
- Number Of Poles
- 2
- Pozisyon Sayısı
- 2
- Max Current Rating
- 28A
- Radyasyon Dayanımı
- No
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Gerilim
- 300V
- Uzunluk
- 10.16mm
- Wirecable Gauge
- 24 AWG
- Montaj
- Through Hole
- Lead Pitch
- 5.08mm
- Akım Değeri
- 24A
- Housing Color
- Green
