Volume pricing
- 1+ pcs$0.17
- 10+ pcs$0.16
- 100+ pcs$0.15
- 500+ pcs$0.15
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

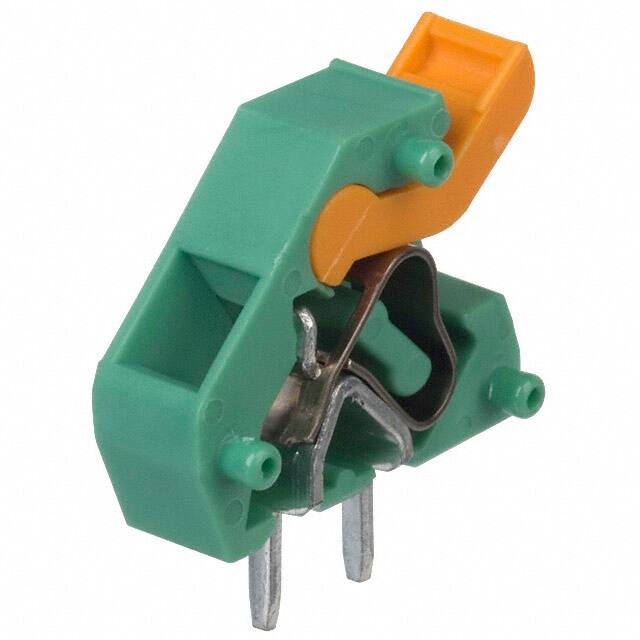

Specifications
- Wire Termination
- Screwless - Spring Cage, Tension Clamp
- ECCN Kodu
- EAR99
- Nominal Gerilim
- 400V
- Akım
- 10A
- Fabrika Tedarik Süresi
- 7 Weeks
- Uzunluk
- 5.08mm
- Özellikler
- Interlocking (Side)
- Pitch
- 5.08mm
- Kurşunsuz Kodu
- yes
- Terminal And Terminal Block Type
- MODULAR TERMINAL BLOCK
- Wire Gauge
- 14-24 AWG
- Additional Feature
- POLYAMIDE, 94V-0
- Max Supply Voltage
- 250V
- Mating Orientation
- 45° (135°) Angle with Board
- Montaj Tipi
- Through Hole
- Sıra Sayısı
- 1
- RoHS Durumu
- RoHS Compliant
- REACH Uyumluluk Kodu
- unknown
- Stripping Length
- 7.5mm
- Number Of Contacts
- 1
- Fastening Method
- SPRING LOADED
- Akım Değeri
- 16A
- Wire Gauge Max
- 24 AWG
- Seri
- COMBICON ZFKDS
- Safety Approval
- UL; CSA
- Kurşunsuz
- Lead Free
- Ambalaj
- Bulk
- Weight
- 1.390005g
- Terminal
- Solder
- Yayın Yılı
- 2010
- Renk
- Green
- Gerilim
- 300V
- Housing Material
- Polyamide (PA), Nylon
- HTS Kodu
- 8536.69.40.40
- Max Current Rating
- 16A
- Flammability Rating
- UL94 V-0
- Depth
- 17mm
- Contact Materials
- Tin
- Wire Cross Section
- 2.5 mm2
- Montaj
- Through Hole
