Volume pricing
- 1+ pcs$3.68
- 10+ pcs$3.47
- 100+ pcs$3.27
- 500+ pcs$3.09
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

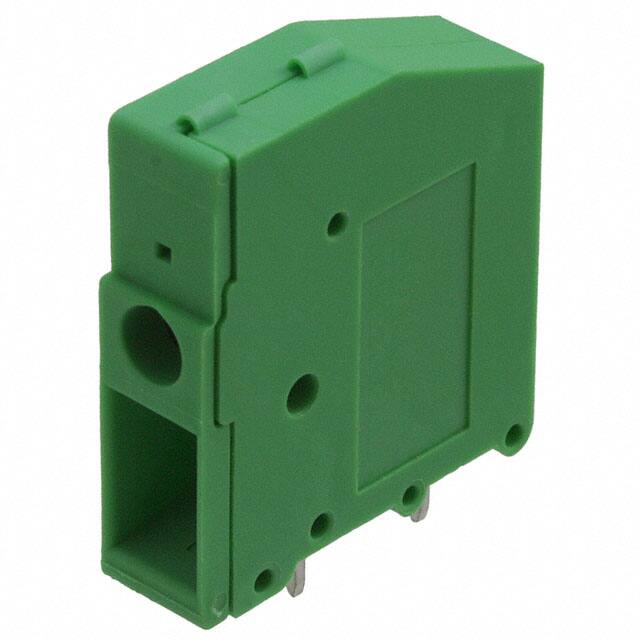

Specifications
- Renk
- Green
- Yayın Yılı
- 2003
- Number Of Ways
- 1
- Max Current Rating
- 32A
- Orientation
- Right Angle
- Kurşunsuz Kodu
- yes
- Wire Gauge Max
- 24 AWG
- Kurşunsuz
- Lead Free
- Akım Değeri
- 32A
- RoHS Durumu
- RoHS Compliant
- Uzunluk
- 26mm
- Weight
- 9.220002g
- Montaj
- Through Hole
- ECCN Kodu
- EAR99
- Gerilim
- 300V
- Wire Gauge
- 10-24 AWG
- Max Supply Voltage
- 500V
- Montaj Tipi
- Through Hole
- Pitch
- 7.62mm
- Seri
- COMBICON FRONT
- Flammability Rating
- UL94 V-2
- Mating Orientation
- Horizontal with Board
- Genişlik
- 34.3mm
- Ambalaj
- Bulk
- Yükseklik
- 33.4mm
- Fabrika Tedarik Süresi
- 7 Weeks
- Terminal
- Solder
- Wire Cross Section
- 6 mm2
- Additional Feature
- POLYAMIDE, 94V-2
- Safety Approval
- UL; CSA
- Terminal And Terminal Block Type
- MODULAR TERMINAL BLOCK
- Number Of Contacts
- 1
- Parça Durumu
- Active
- Nominal Gerilim
- 500V
- Radyasyon Dayanımı
- No
- Wire Gauge Min
- 10 AWG
- HTS Kodu
- 8536.90.40.00
- Özellikler
- Interlocking (Side)
- Wire Termination
- Screw - Pressure Clip
- Housing Material
- Polyamide (PA), Nylon
