0717238

Specifications

Fabrika Tedarik Süresi

4 Weeks

Panel Mount Type

2 Piece

Additional Feature

PA, UL 94V-0

Wire Gauge

6-24 AWG

Front Panel Wire Connection

Bolt/Screw Clamp - Wire Entry 90° to Panel

Number Of Ways

2

Montaj

Panel

Nem Hassasiyeti (MSL)

1 (Unlimited)

Rear Panel Wire Connection

Bolt/Screw Clamp - Wire Entry Parallel to Panel

Onay Kuruluşu

KEMA, cULus

Flammability Rating

UL94 V-0

RoHS Durumu

RoHS Compliant

Panel Thickness

0.039 ~ 0.157 1.0 ~ 4.0mm

Wire Gauge Min

6 AWG

Safety Approval

UL

Terminal And Terminal Block Type

STRIP TERMINAL BLOCK

Akım Değeri

76A

Max Current Rating

63A

Nominal Gerilim

1kV

Number Of Contacts

2

Gerilim

600V

Renk

Gray

Kurşunsuz Kodu

yes

Sıra Sayısı

1

ECCN Kodu

EAR99

Seri

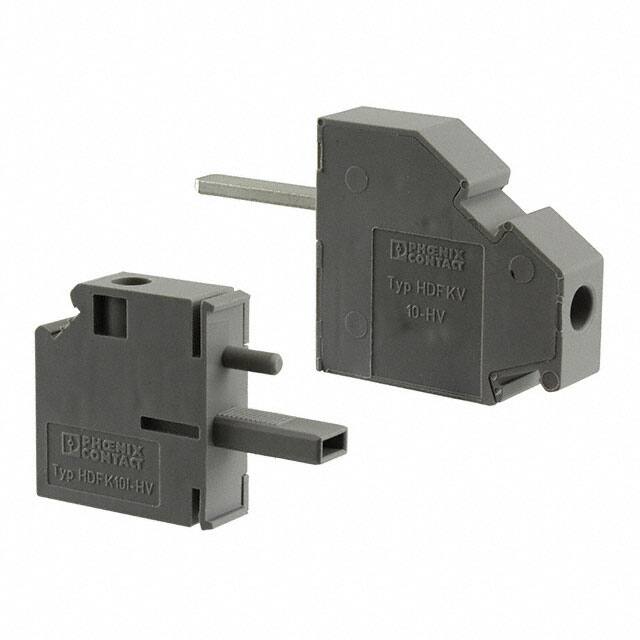

CLIPLINE HDFKV

Number Of Decks

1

Positions Per Level

1

Parça Durumu

Active

Akım

65A

HTS Kodu

8536.69.40.40

Connector Type

Screw

Genişlik

0.398 10.10mm

Wire Gauge Max

24 AWG
