Volume pricing
- 1+ pcs$10.41
- 10+ pcs$9.82
- 100+ pcs$9.27
- 500+ pcs$8.74
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

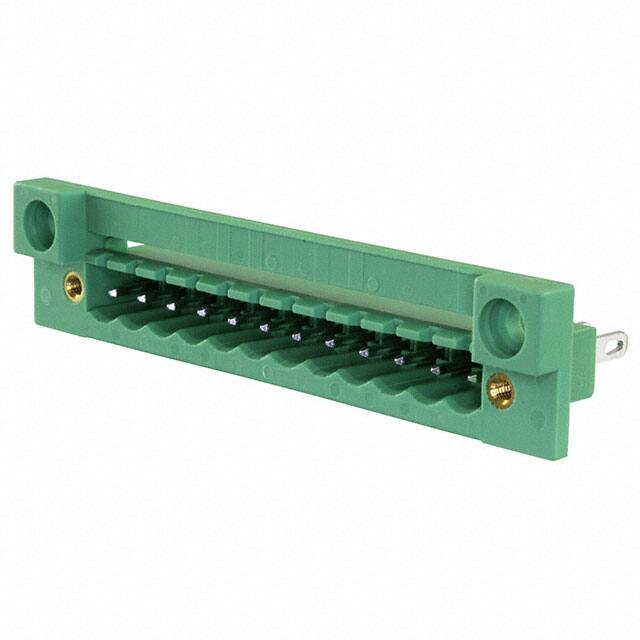

Specifications
- Terminal
- Solder
- Number Of Ways
- 12
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Kurşunsuz Kodu
- yes
- Wire Gauge Min
- 24 AWG
- Uzunluk
- 70mm
- Depth
- 29.5mm
- Akım Değeri
- 12A
- Panel Thickness
- 0.020 ~ 0.157 0.5 ~ 4.0mm
- Parça Durumu
- Active
- Number Of Levels
- 1
- Montaj
- Wall
- Rear Panel Wire Connection
- Quick Connect - 0.187 (4.75mm), Solder Eyelet
- Nominal Gerilim
- 320V
- Flammability Rating
- UL94 V-2
- HTS Kodu
- 8536.69.40.40
- Terminal And Terminal Block Type
- MODULAR TERMINAL BLOCK
- Pozisyon Sayısı
- 12
- Safety Approval
- UL; CSA
- Front Panel Wire Connection
- Header, Male Pins
- Pitch
- 0.197 5.00mm
- Wire Gauge Max
- 12 AWG
- Orientation
- Straight
- Max Current Rating
- 12A
- REACH Uyumluluk Kodu
- unknown
- ECCN Kodu
- EAR99
- Housing Material
- Polyamide
- Contact Materials
- Tin
- Wire Cross Section
- 2.5 mm2
- Renk
- Green
- Gerilim
- 300V
- Akım
- 15A
- Yükseklik
- 27.2mm
- RoHS Durumu
- RoHS Compliant
- Seri
- COMBICON DFK-MSTB
- Fabrika Tedarik Süresi
- 4 Weeks
- Sıra Sayısı
- 1
- Number Of Decks
- 1
- Genişlik
- 3.150 80.00mm
- Panel Mount Type
- Screw Mount - Front Flange
