Volume pricing
- 1+ pcs$4.35
- 10+ pcs$4.10
- 100+ pcs$3.87
- 500+ pcs$3.65
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

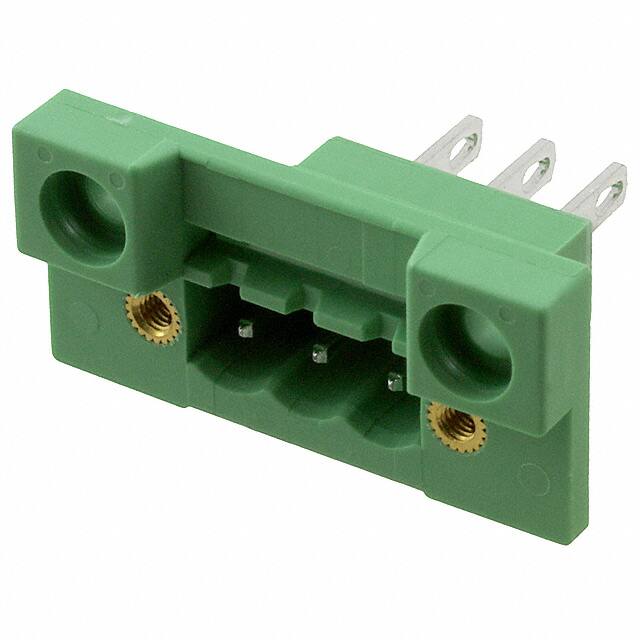

Specifications
- Nominal Gerilim
- 320V
- Flammability Rating
- UL94 V-2
- Rear Panel Wire Connection
- Quick Connect - 0.110 (2.80mm), Solder Eyelet
- Front Panel Wire Connection
- Header, Male Pins
- Safety Approval
- UL; CSA
- Pozisyon Sayısı
- 3
- Terminal And Terminal Block Type
- MODULAR TERMINAL BLOCK
- Orientation
- Straight
- Pitch
- 0.197 5.00mm
- ECCN Kodu
- EAR99
- REACH Uyumluluk Kodu
- unknown
- Max Current Rating
- 12A
- Number Of Ways
- 3
- Terminal
- Solder
- Kurşunsuz Kodu
- yes
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Akım Değeri
- 12A
- Panel Thickness
- 0.020 ~ 0.157 0.5 ~ 4.0mm
- Parça Durumu
- Active
- Uzunluk
- 35mm
- Depth
- 29.5mm
- Number Of Levels
- 1
- Montaj
- Wall
- Fabrika Tedarik Süresi
- 7 Weeks
- Seri
- COMBICON DFK-MSTB
- RoHS Durumu
- RoHS Compliant
- Genişlik
- 1.378 35.00mm
- Weight
- 4.8g
- Number Of Decks
- 1
- Sıra Sayısı
- 1
- Panel Mount Type
- Screw Mount - Front Flange
- Connector Type
- Plug
- Contact Materials
- Tin
- Housing Material
- Polyamide
- Akım
- 10A
- Gerilim
- 300V
- Renk
- Green
- Wire Cross Section
- 2.5 mm2
- Yükseklik
- 27.2mm
