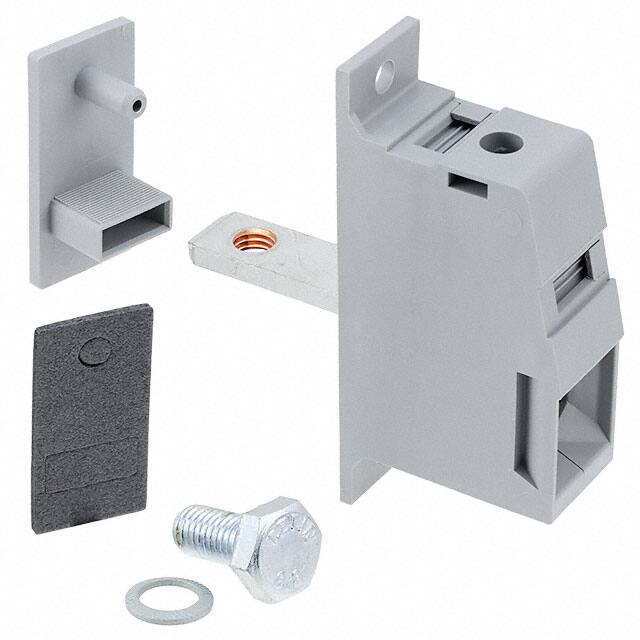

0709916

Specifications

ECCN Kodu

EAR99

Max Current Rating

230A

REACH Uyumluluk Kodu

unknown

Orientation

Right Angle

Wire Gauge Max

3 AWG

Front Panel Wire Connection

Bolt/Screw Clamp - Wire Entry 90° to Panel

Terminal And Terminal Block Type

BARRIER STRIP TERMINAL BLOCK

Pozisyon Sayısı

2

HTS Kodu

8536.69.40.40

Wirecable Gauge

4 AWG

Wire Gauge

4 AWG

Rear Panel Wire Connection

Screw Terminal

Flammability Rating

UL94 V-0

Nominal Gerilim

630V

Positions Per Level

1

Montaj

Panel

Panel Thickness

0.039 ~ 0.236 1.0 ~ 6.0mm

Parça Durumu

Active

Akım Değeri

232A

Wire Gauge Min

4 AWG

Uzunluk

91.5mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

Screw

Panel Mount Type

2 Piece

Weight

176.999992g

Genişlik

0.984 25.00mm

Fabrika Tedarik Süresi

4 Weeks

Seri

CLIPLINE HDFK

RoHS Durumu

RoHS Compliant

Akım

230A

Renk

Gray

Gerilim

600V
