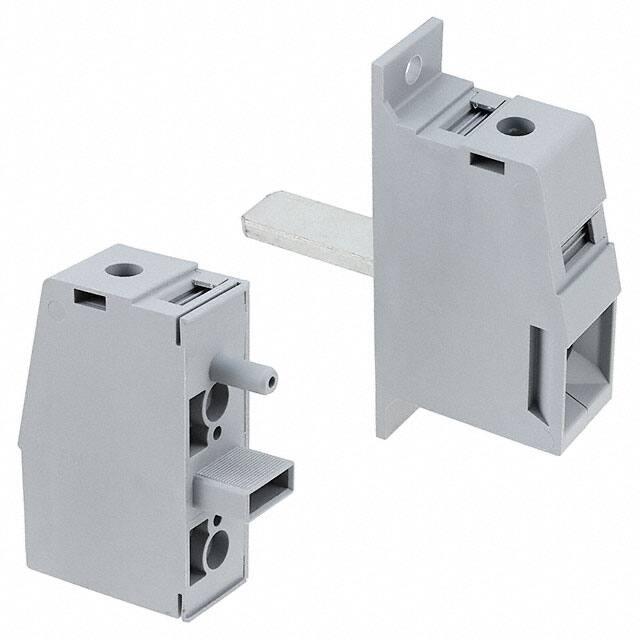

0709644

Specifications

Wirecable Gauge

4 AWG

Kurşunsuz

Lead Free

Wire Gauge

4 AWG

Rear Panel Wire Connection

Bolt/Screw Clamp - Wire Entry 90° to Panel

Flammability Rating

UL94 V-0

Nominal Gerilim

1kV

HTS Kodu

8536.69.40.40

Terminal And Terminal Block Type

MODULAR TERMINAL BLOCK

Safety Approval

UL; CSA

Front Panel Wire Connection

Bolt/Screw Clamp - Wire Entry 90° to Panel

Wire Gauge Max

3 AWG

Orientation

Right Angle

REACH Uyumluluk Kodu

unknown

Max Current Rating

232A

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Wire Gauge Min

2 AWG

Parça Durumu

Active

Panel Thickness

0.039 ~ 0.236 1.0 ~ 6.0mm

Akım Değeri

232A

Max Supply Voltage

1kV

Montaj

Panel

Positions Per Level

1

Seri

CLIPLINE HDFK

RoHS Durumu

RoHS Compliant

Fabrika Tedarik Süresi

4 Weeks

Sıra Sayısı

2

Weight

249.999986g

Genişlik

0.984 25.00mm

Panel Mount Type

2 Piece

Connector Type

Screw

Housing Material

Polyamide

Gerilim

600V

Renk

Gray

Akım

230A
