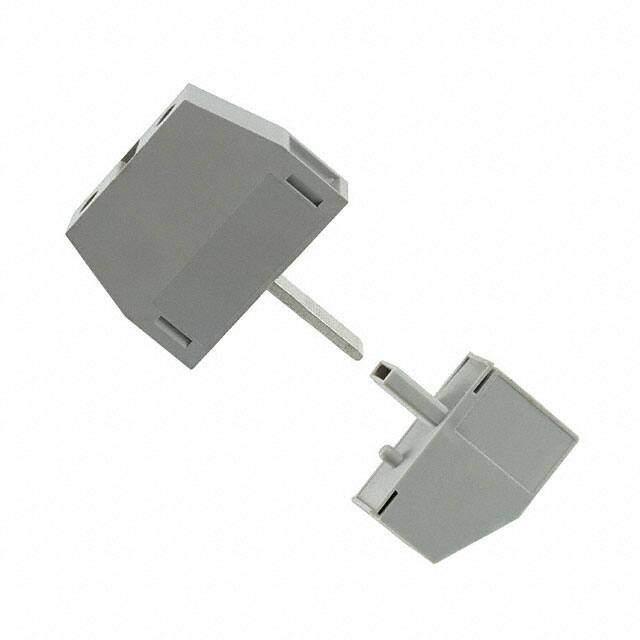

0709563

Specifications

Panel Mount Type

2 Piece

Seri

CLIPLINE HDFKV

RoHS Durumu

RoHS Compliant

Fabrika Tedarik Süresi

4 Weeks

Genişlik

0.594 15.10mm

Weight

93.38401g

Gerilim

600V

Renk

Gray

Akım

115A

Wire Gauge Max

8 AWG

Max Current Rating

125A

REACH Uyumluluk Kodu

unknown

ECCN Kodu

EAR99

Flammability Rating

UL94 V-0

Nominal Gerilim

500V

Wire Gauge

2-8 AWG

Rear Panel Wire Connection

Bolt/Screw Clamp - Wire Entry 90° to Panel

Terminal And Terminal Block Type

MODULAR TERMINAL BLOCK

Number Of Contacts

4

Safety Approval

UL; CSA

Front Panel Wire Connection

Bolt/Screw Clamp - Wire Entry Parallel to Panel (2)

Wire Gauge Min

2 AWG

Parça Durumu

Active

Number Of Circuits

2

Panel Thickness

0.039 ~ 0.236 1.0 ~ 6.0mm

Akım Değeri

125A

Montaj

Panel

Positions Per Level

1

Terminal

Screw

Nem Hassasiyeti (MSL)

Not Applicable

Kurşunsuz Kodu

yes
