Volume pricing
- 1+ pcs$0.33
- 10+ pcs$0.32
- 100+ pcs$0.30
- 500+ pcs$0.28
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Wire Gauge
- 14-16 AWG
- Ambalaj
- Bulk
- ECCN Kodu
- EAR99
- Montaj Tipi
- Free Hanging (In-Line)
- Yayın Yılı
- 2002
- Wire Gauge Max
- 16 AWG
- Parça Durumu
- Active
- Fabrika Tedarik Süresi
- 4 Weeks

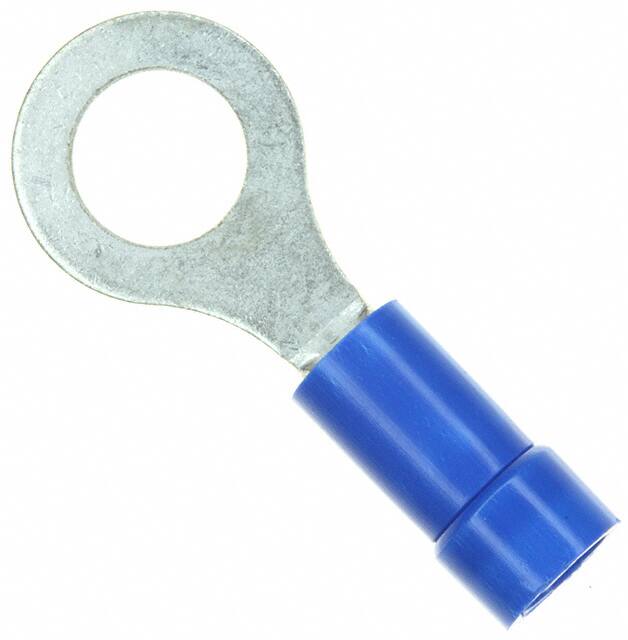

- Terminal And Terminal Block Type
- RING TERMINAL
- Radyasyon Dayanımı
- No
- Safety Approval
- CSA; UL
- Seri
- Pan-Term®
- Terminal
- Crimp
- Wire Gauge Min
- 14 AWG
- Renk
- Blue
- HTS Kodu
- 8536.90.40.00
- Depth
- 11.7mm
- Length Overall
- 1.120 28.45mm
- Thickness
- 0.032 0.81mm
- Nem Hassasiyeti (MSL)
- Not Applicable
- Contact Plating
- Tin
- RoHS Durumu
- ROHS3 Compliant
- Width Outer Edges
- 0.460 11.68mm
- Studtab Size
- 1/4 Stud
- Terminal Type
- Circular
- Insulation Diameter
- 0.170 (4.32mm)
- Contact Materials
- Copper
- Insulation
- Insulated
- Uzunluk
- 28.448mm
- Material Insulation
- Vinyl
- Montaj
- Free Hanging
- Özellikler
- Brazed Seam
