Volume pricing
- 1+ pcs$0.35
- 10+ pcs$0.33
- 100+ pcs$0.31
- 500+ pcs$0.30
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support
Specifications
- Montaj Tipi
- Free Hanging (In-Line)
- Contact Plating
- Tin
- Length Overall
- 1.230 31.24mm
- Orientation
- Straight
- Uzunluk
- 31.242mm
- Insulation Diameter
- 0.225 (5.72mm)
- Özellikler
- Brazed Seam
- Seri
- Pan-Term®
- Weight
- 1.270059kg
- Studtab Size
- 1/4 Stud
- Material Insulation
- Vinyl
- Radyasyon Dayanımı
- No
- Renk
- Yellow
- Depth
- 13.2mm
- RoHS Durumu
- ROHS3 Compliant
- Insulation
- Insulated
- Genişlik
- 9.65mm
- Thickness
- 0.040 1.02mm
- ECCN Kodu
- EAR99
- Wire Gauge Max
- 10 AWG
- Width Outer Edges
- 0.520 13.21mm

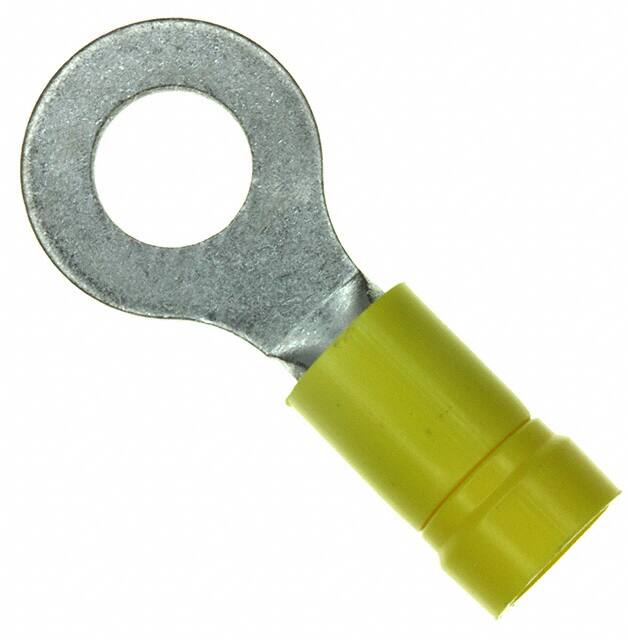

- Terminal And Terminal Block Type
- RING TERMINAL
- HTS Kodu
- 8536.90.40.00
- Wire Gauge Min
- 12 AWG
- Contact Materials
- Copper
- Terminal
- Crimp
- Wire Gauge
- 10-12 AWG
- Safety Approval
- CSA; UL
- Nem Hassasiyeti (MSL)
- Not Applicable
- Terminal Type
- Circular
- Parça Durumu
- Active
- Yayın Yılı
- 2003
- Fabrika Tedarik Süresi
- 4 Weeks
- Montaj
- Free Hanging
- Ambalaj
- Bulk
